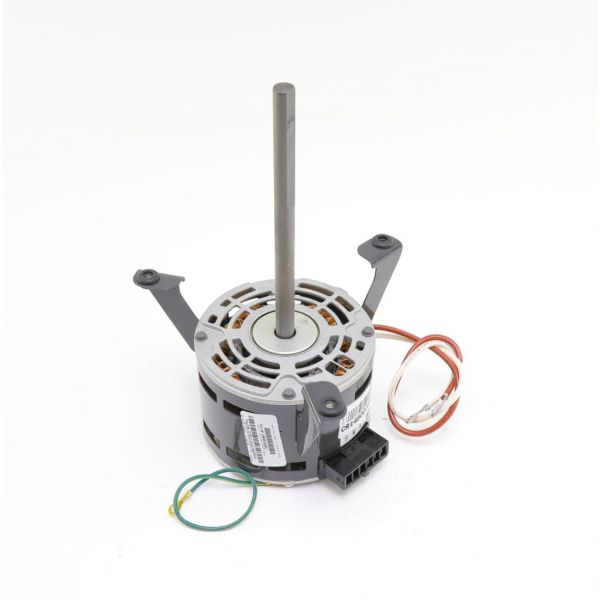

Climatemaster C14B0016N01 Electric Motor 1/30HP 1120RPM 208-230V

Product Description

The CLIMATEMASTER C14B0016N01 is a single-phase electric motor rated at 1/30 horsepower and 1120 RPM, designed for use in geothermal heat pump systems. Operating on 208-230 volts, this motor drives fan and blower assemblies that maintain airflow and support heat transfer throughout the refrigerant circuit. Licensed HVAC technicians and geothermal system installers are the typical service professionals working with this component. Its single-phase design suits both residential and light commercial geothermal installations where consistent, low-speed air movement is required for system efficiency.

This motor is intended for geothermal heat pump applications in residential and commercial settings. It powers the fan or blower assembly within the unit, maintaining the airflow needed for proper heat exchange between the refrigerant loop and the conditioned space. Installations in both new construction and retrofit geothermal systems are within its intended scope. Technicians specifying a direct replacement motor for geothermal equipment should verify shaft size, rotation direction, and mounting configuration against the original unit before installation.

Key Features

• 1/30 HP output suited for low-speed fan and blower duty in geothermal heat pumps
• 1120 RPM operating speed for steady, controlled airflow
• 208-230V single-phase input compatible with standard residential and light commercial power supplies
• Designed as an OEM-style replacement to maintain original system performance
• Applicable to both residential and commercial geothermal heat pump installations

Compatibility

Designed as an OEM-style replacement electric motor for CLIMATEMASTER geothermal heat pump systems requiring a 1/30 HP, 1120 RPM, 208-230V single-phase motor. Verify mounting configuration, shaft dimensions, and rotation direction against the existing unit before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with geothermal heat pump systems. Shut down and lock out the unit at the disconnect before removing or installing the motor. Confirm that voltage supply matches the motor nameplate rating before energizing. Follow applicable local codes and manufacturer wiring diagrams when reconnecting motor leads.

Technical Specifications

• Type: Electric Motor
• Horsepower: 1/30 HP
• Voltage: 208-230V
• Speed: 1120 RPM
• Phase: Single Phase

Standard Information

• Brand: CLIMATEMASTER
• Manufacturer Part Number: C14B0016N01
