Cleveland Steel Tool 22116 Round Ironworker Punch

Product Description

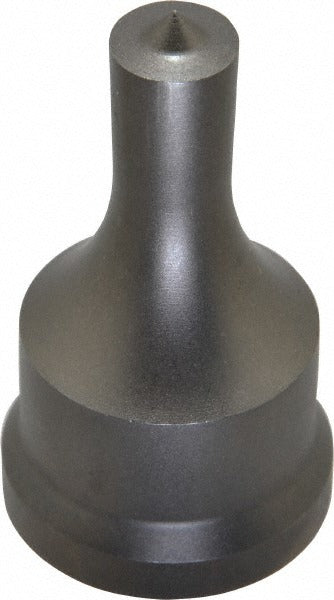

The CLEVELAND STEEL TOOL 22116 is a round ironworker punch designed for use in hydraulic and mechanical ironworker machines. It produces clean, consistent 0.5-inch diameter holes in structural steel, plate, and flat bar stock. The punch measures 1.219 inches in body diameter, 1.375 inches in head diameter, and 2.375 inches in overall length. It is sized for direct replacement in a wide range of ironworker brands and is installed by ironworkers, fabricators, and metal shop technicians performing structural steel fabrication and plate work.

This punch is suited for production and job-site applications where repetitive hole punching in mild steel is required. It fits a broad range of hydraulic and mechanical ironworker machines, making it a practical stock item for shops running multiple machine brands. Typical applications include punching bolt holes in structural members, plates, and bar stock in both fabrication shop and field environments.

Key Features

• 0.5-inch round punch diameter for standard bolt-hole applications
• Body diameter of 1.219 inches fits a wide range of ironworker tooling holders
• Head diameter of 1.375 inches provides positive seating in the machine ram
• Overall length of 2.375 inches meets standard ironworker punch length requirements
• Compatible with a broad range of ironworker machine brands for versatile shop use

Compatibility

Compatible with the following ironworker machines: Durma, Ficep, Gairu, Geka, Hendley and Whittemore, Hill-Acme/Kling, HMI (Hydraulic Machines Inc.), Ironcrafter, Kingsland, Omera, Peddinghaus, Promoco/Omes, Scotchman, and Spartan.

Installation Notes

Installation is performed by qualified metal fabricators or ironworker machine operators. Always de-energize and lock out the ironworker machine before removing or installing tooling. Confirm that the punch and die are properly aligned and that the die clearance is appropriate for the material thickness before operating. Follow the machine manufacturer's tooling installation procedures and applicable shop safety standards.
