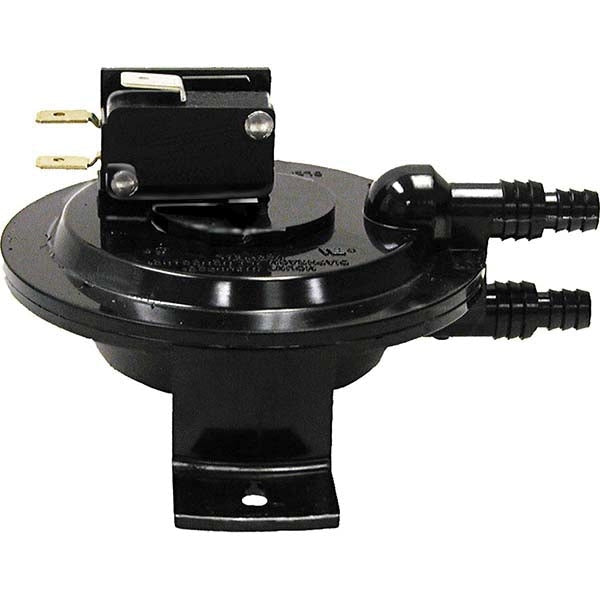

Cleveland Controls RSS498013 Adjustable Differential Air Pressure Switch 1 - 4 in-WC

Product Description

The Cleveland Controls RSS498013 is an adjustable differential air pressure switch designed for HVAC systems. This device operates within a pressure range of one to four inches of water column and features a single pole double throw configuration.

• Thermoplastic housing protects internal components.
• Mounts in any vertical position and is easy to install.
• Sustainably made in the USA with multiple certifications.

Product Highlights

This pressure switch is ideal for light industrial and commercial HVAC applications, ensuring reliable performance and easy integration into existing systems.

Product Information

Standard Information

• Brand: Cleveland Controls
• Part Number: RSS498013

Technical Specifications

• Connection Size: 1/4 or 3/16 in
• Connection Type: Quick-Connect
• Contact Configuration: SPDT
• Contact Rating: 5 A Non-Inductive, 1 A Pilot Duty
• Dimension: 4.62 in W x 4 in H x 2.13 in D
• Frequency Rating: 60 Hz
• Item Name: Air Pressure Switch
• Material: Thermoplastic
• Number of Poles: 1
• Operating Cycles: 100000 Cycles
• Pressure Rating: 1 - 4 in-WC
• Series: RSS
• Temperature Rating: -40 to 190 deg F
• Type: Adjustable, Differential
• Voltage Rating: 120 - 277 VAC
