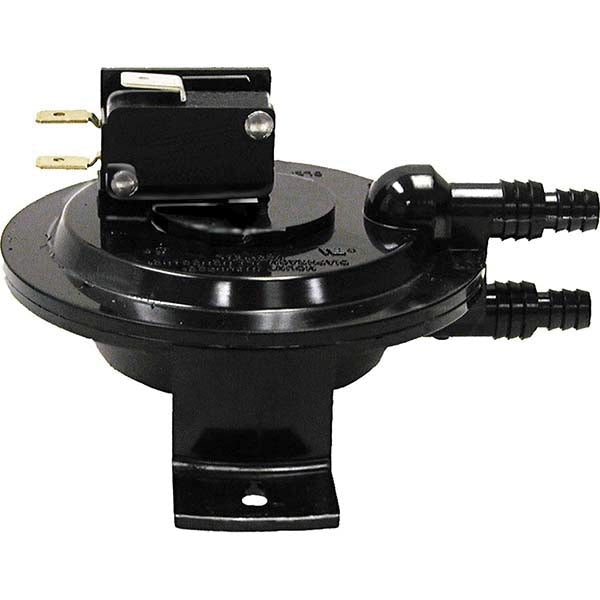

Cleveland Controls RSS495011 Adjustable Differential Air Pressure Switch 0.2 - 1 in-WC

Product Description

The Cleveland Controls RSS495011 is an adjustable differential air pressure switch. It is designed for industrial use, featuring a pressure range of 0.2 to 1 inch water column. This switch is robust and effective for pressure monitoring in HVAC and commercial applications.

• Pressure range from 0.2 to 1 inch water column.
• SPDT configuration for versatile control.
• Durable thermoplastic housing to withstand harsh conditions.

Product Highlights

This air pressure switch is ideal for monitoring air pressure in various systems, including HVAC, commercial, and light industrial applications. Its adjustable settings provide flexibility for different environments.

Product Information

Standard Information

• Brand: Cleveland Controls
• Item Number: RSS-495-011

Technical Specifications

• Connection Size: 1/4 or 3/16 inch
• Connection Type: Quick-Connect
• Contact Configuration: SPDT
• Contact Rating: 5 A Non-Inductive, 1 A Pilot Duty
• Dimensions: 4.62 inches wide x 4 inches high x 2.13 inches deep
• Frequency Rating: 60 Hz
• Operating Cycles: 100000 Cycles
• Temperature Rating: -40 to 190 degrees Fahrenheit
• Voltage Rating: 120 - 277 VAC
