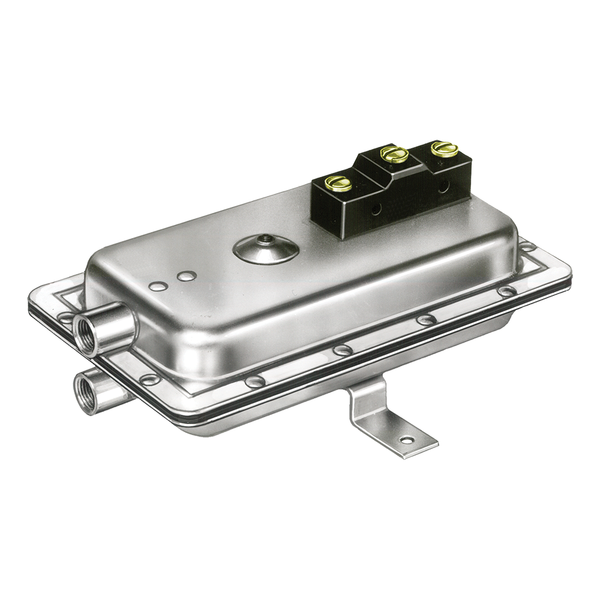

Cleveland Controls ANA-126-310 Air Pressure Switch 10A 125/250 VAC (1 Pack)

Product Description

The Cleveland Controls ANA-126-310 is an air pressure switch designed to monitor and control air pressure in industrial and HVAC systems. It provides an adjustable setpoint across a 0.5 to 125 psi range, uses a durable diaphragm seal for operation in demanding environments, and features a single-pole, double-throw (SPDT) electrical contact rated 10 amps at 125/250 VAC for controlling pumps, valves, compressors, and pneumatic equipment.

• Adjustable pressure range of 0.5 to 125 psi for customizable setpoints
• SPDT (single-pole, double-throw) electrical contact rated 10 amps at 125/250 VAC
• Durable diaphragm seal for reliable operation in industrial and HVAC applications

Product Highlights

Adjustable 0.5–125 psi range; SPDT contact rated 10A at 125/250 VAC; diaphragm-sealed construction for industrial and HVAC control.

Product Information

Standard Information

• Brand: CLEVELAND CONTROLS
• Manufacturer Part Number: ANA-126-310
