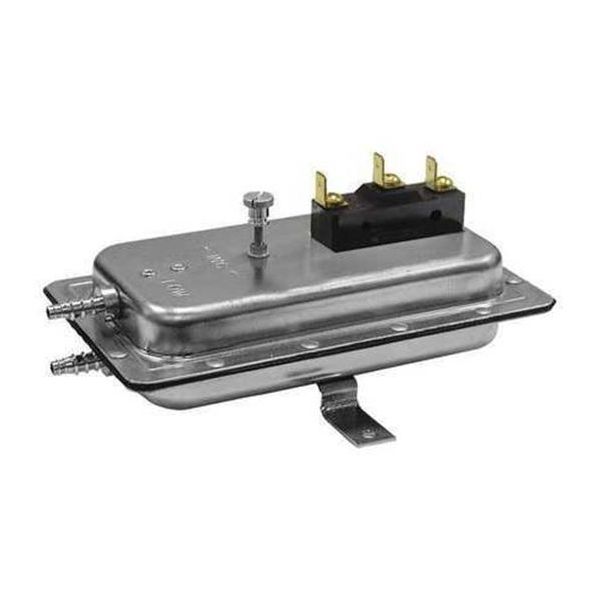

Cleveland Controls AFS-298-112 Static Pressure Switch .05-12Barb

Product Description

The AFS-298-112 Static Pressure Switch from Cleveland Controls is built for accurate pressure monitoring in industrial setups. It features a pressure range from 0.05 to 12 inches of water column, which makes it suitable for a variety of applications.

• Pressure range: 0.05 to 12 inches of water column
• Electrical rating: 15 A at 125 VAC, 10 A at 250 VAC
• Temperature range: -40°F to 150°F

Product Highlights

This switch is ideal for HVAC systems, aiding in air handling and equipment control. Its robust design ensures reliability even in harsh conditions.

Product Information

Standard Information

• Brand: Cleveland Controls
• MPN: AFS-298-112

Technical Specifications

• Pressure Range: 0.05 to 12 inches of water column
• Differential Adjustment Range: 0.05 to 6 inches of water column
• Adjustable Deadband: Yes
• Electrical Rating: 15 A at 125 VAC, 10 A at 250 VAC
• Operating Temperature: -40°F to 150°F
• Item Number: AFS-298-112
• Shipping Weight: 0.69 lbs
• Dimensions: 4.3 x 6 x 2.65 inches
