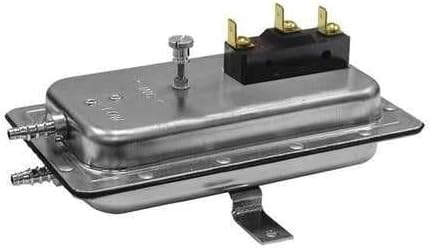

Cleveland Controls AFS-275-112 AirSwitch .05-2 WC SPDT

Product Description

The Cleveland Controls model AFS-275-112 is a high-performance air pressure switch designed for reliable and accurate pressure monitoring in industrial systems. This device features a robust SPDT design, allowing for dual operation modes which makes it versatile in various applications.

• Adjustable set point range from .05 to 2 inches WC for flexible usage.
• Incorporates three quick-connect spade terminals for easy installation.
• Approved for use with UL, FM, CE, CSA standards ensuring high safety and quality.

Product Highlights

This air switch is crafted from durable materials to withstand tough industrial environments whilst delivering precise functionality. Its compact size facilitates seamless integration into existing setups.

Product Information

Standard Information

• Brand: Cleveland Controls
• MPN: AFS-275-112

Technical Specifications

• Electrical Rating: 300 VA pilot duty at 115 to 277 VAC, 15 amps non-inductive to 277 VAC, 60 Hz
• Contact Material: Silver
• Electrical Connections: Three 90° quick-connect ¼ inch spade terminals
• Sample Line Connectors: Two dual barbed connectors for ¼ inch to ⅛ inch slip-on flexible tubing
