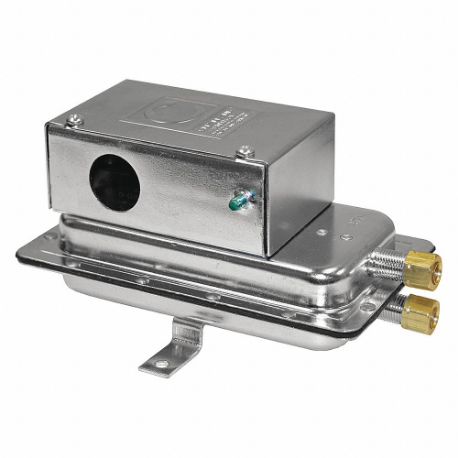

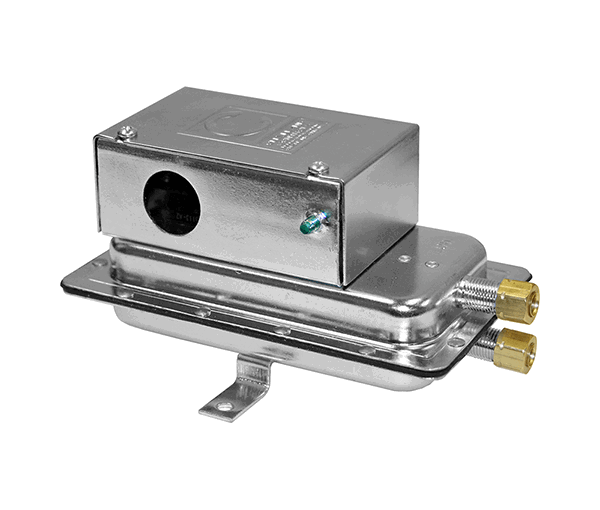

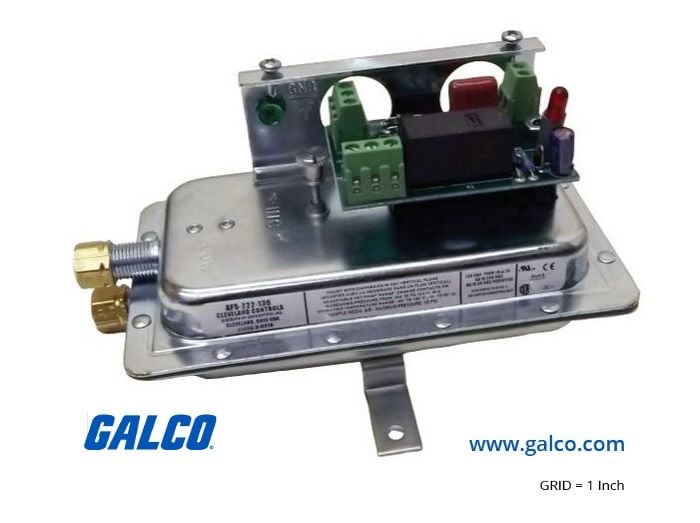

Cleveland Controls AFS-222-136 Adjustable Air Flow Switch

Product Description

The Cleveland Controls AFS-222-136 is an adjustable air flow switch designed for HVAC systems, energy management, and building automation. It detects positive, negative, or differential air pressure, making it versatile for various applications. The unit includes a diaphragm and calibration spring protected within a durable plated enclosure.

• Suitable for package burners, furnaces, and fuel-burning devices.
• Allows electrical connections through a seven-eighths inch opening.
• Accepts rigid or semi-rigid tubing for air sampling.

Product Highlights

This air flow switch is essential for maintaining optimal airflow in HVAC systems, ensuring safe operation of equipment.

Product Information

Standard Information

• Brand: Cleveland Controls
• Item: Air Switch

Technical Specifications

• MPN: AFS-222-136
• Pressure Type: Differential, Negative, Positive
• Pressure Setting Range: 0.05 inches wc to 12 inches wc
• Switch Voltage: 277V AC
• Contact Form: SPDT
• Operating Temperature: -40 to 180 degrees F (-40 to 82 degrees C)
• Enclosure Rating: NEMA 1
• Weight: 1.2 lb (0.5 kg)
