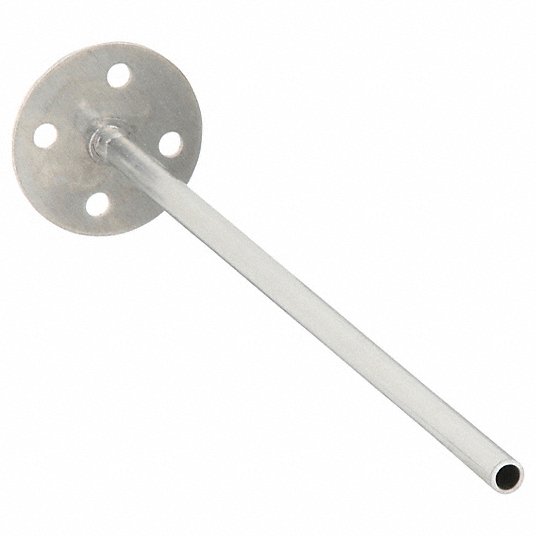

Cleveland Controls 21119112 Static Pressure Probe 8in Barbed

Product Description

The CLEVELAND CONTROLS 21119112 static pressure probe features an 8-inch barbed design. It is used with pressure transmitters and pressure switches to measure air pressure against duct walls. It features a straight-cut tip with an opening perpendicular to the airstream that measures static air pressure. It mounts in a 3/8 in hole in the duct.

• Used with pressure transmitters and pressure switches.
• Measures the air pressure against the duct walls
• All mount in a 3/8 in hole in the duct.

Product Highlights

Static pressure probe for use with pressure transmitters and switches. Measures air pressure in HVAC ducts. Features barbed design for secure connection.

Product Information

Standard Information

• Brand: CLEVELAND CONTROLS
• Manufacturer Part Number: 21119112
• Country of Origin: USA

Technical Specifications

• Type: Static Pressure Probe
• Sensor Type: Pressure
• Size: 8 in
• Brand: CLEVELAND CONTROLS
• Manufacturer Part Number: 21119-112
• Product Type: Static Pressure Probe
• Application: Air Pressure Sensing Switches
• Overall Length: 9.25 in
• Exterior Length: 1.25 in
• Insertion Length: 8 in
• Flange Diameter: 1.5 in
• Number of Mounting Holes: 4
• Mounting Hole Center to Center Distance: 1 in
• Mounting Hole Diameter: 0.1875 in
• Process Connection Size: 0.5 in
• Process Connection Type: Barb
• Accuracy: Not Rated
• Includes: Metal Barbed Hose Adapter
• UNSPSC: 41111905
