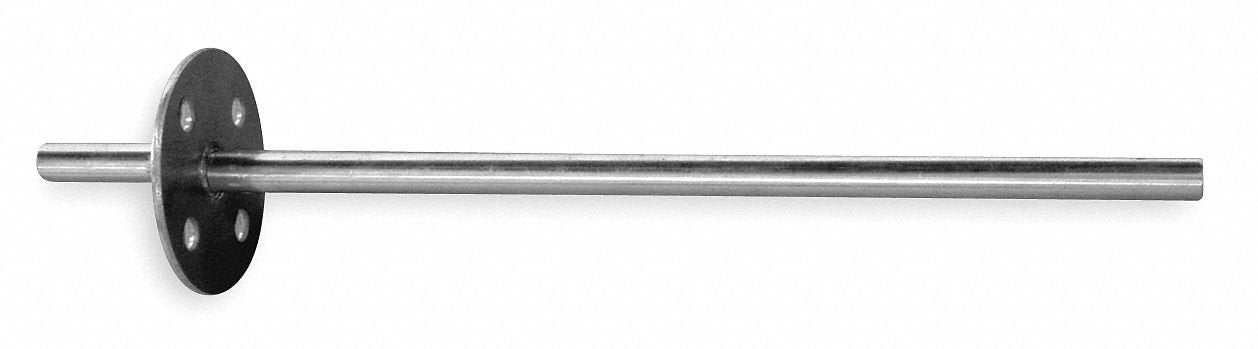

The Cleveland Controls 21118 static pressure probe features a 6-inch insertion length. It is designed for use with air pressure sensing switches. The probe has four radial sensing holes. It can be used to monitor pressure across coils, filters, and blowers.
6-inch insertion length
For use with air pressure sensing switches
Mounts in a 3/8 in hole in the duct
Product Highlights
The Cleveland Controls static pressure probe is suitable for monitoring static or total pressure in HVAC systems.
Product Information
Standard Information
Brand: CLEVELAND CONTROLS
Manufacturer Part Number: 21118
Country of Origin: United States
Technical Specifications
Item [Specifications]
Static Pressure Probe
Type [Specifications]
Aspiration
Fitting Size [Specifications]
1/4
For Use With [Specifications]
Air Pressure Sensing Switches
Mounting Flange [Specifications]
4 Hole
Flange Dia. (In.) [Specifications]
1 1/2 in
Overall Length (In.) [Specifications]
7 1/4 in
Exterior Length (In.) [Specifications]
1 1/4 in
Insertion Length (In.) [Specifications]
6 in
Mounting Hole Dia. (In.) [Specifications]
3/16 in
Mounting Hole Center to Center (In.) [Specifications]
1 in
Country of Origin (subject to change) [Specifications]
