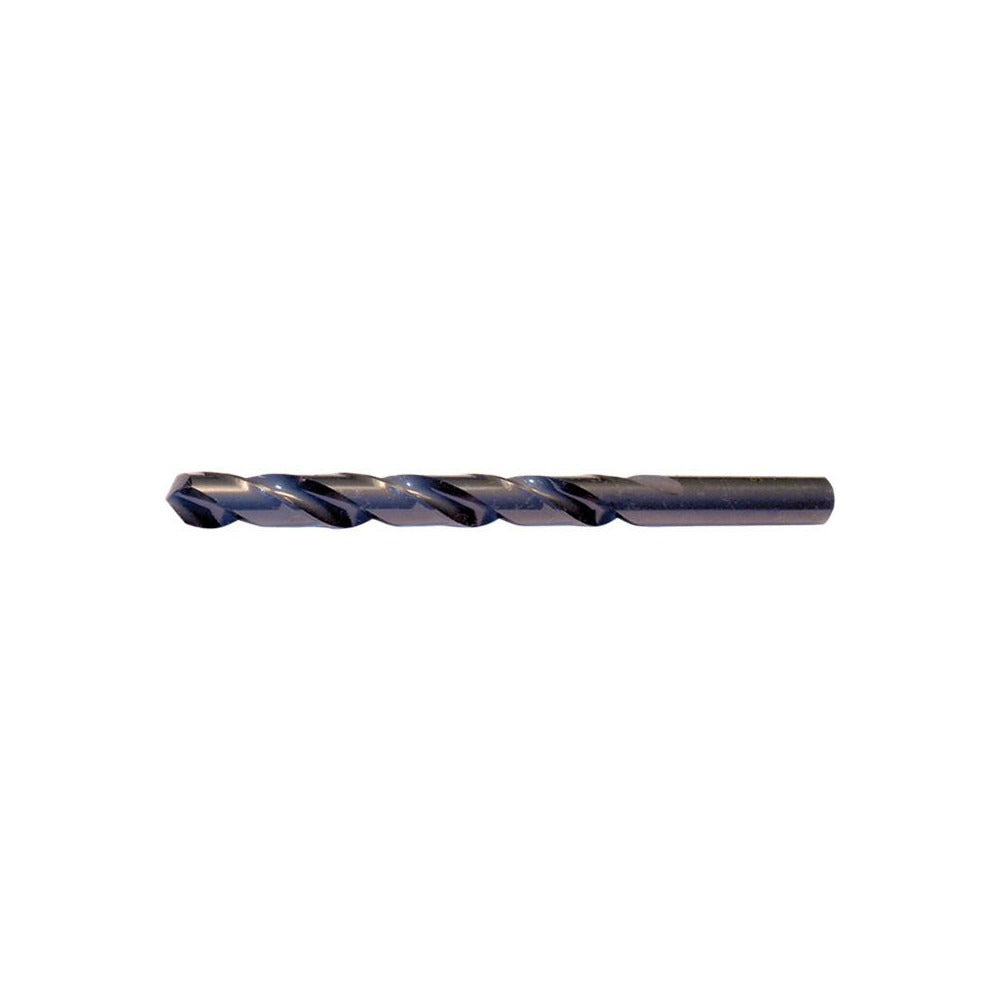

Cleveland C71301 Jobber Length Drill Bit 9.6 Mm Hss

Product Description

The CLEVELAND C71301 is a jobber-length twist drill bit designed for general-purpose metal drilling in production and maintenance environments. Built from high speed steel with an oxide coating for reduced friction and improved chip flow, this bit features a 118-degree standard point angle and a web-thinned, tapered web for easier entry into workpieces. At 9.6 mm (0.3779 inches) in diameter with an overall length of 5.236 inches and a spiral flute length of 3.425 inches, it covers a wide range of through-hole and blind-hole drilling tasks. It is installed and used by machinists, millwrights, and maintenance technicians working with drill presses, hand drills, and CNC equipment.

This bit is suited for general-purpose drilling in ferrous and non-ferrous metals, plastics, and similar materials in both shop and field settings. The straight-cylindrical shank fits standard drill chucks without adapters, making it a practical choice for everyday production drilling, fixture work, and on-site maintenance. The regular spiral geometry promotes consistent chip evacuation during moderate-feed drilling operations.

Key Features

• 9.6 mm (0.3779 inches) diameter with tight tolerance of -0.0010 to 0.0000 inches
• 118-degree standard point angle with web-thinned, tapered web for reduced thrust
• High speed steel construction with oxide finish for heat and wear resistance
• Regular spiral, 2-flute design for efficient chip evacuation
• Straight-cylindrical shank at 0.3779 inches diameter fits standard chucks directly
• Meets ASME B94.11M and DIN 338 standards

Compatibility

Designed as an OEM-style jobber-length drill bit for use in any standard drill chuck accepting a straight-cylindrical shank in the 9.00 mm to 10.00 mm diameter range.

Installation Notes

Secure the shank fully in the drill chuck and verify runout before beginning a cut. Always power down or de-energize the machine before changing bits. Use appropriate cutting fluid for ferrous materials to extend bit life and maintain hole quality. Proper feed rate and speed selection for the workpiece material are critical to avoiding premature edge wear.
