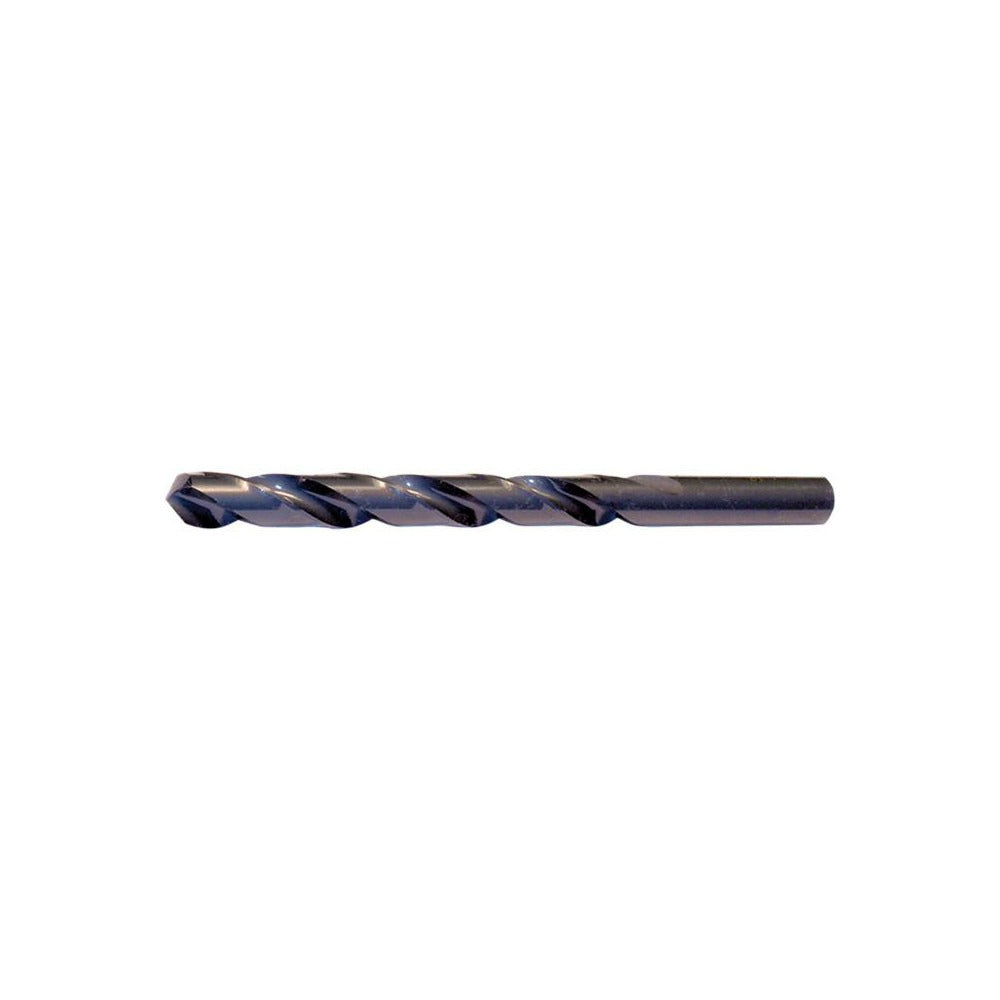

Cleveland C71260 5.5 Mm Hss Jobber Length Drill Bit

Product Description

The CLEVELAND C71260 is a jobber-length drill bit designed for general-purpose metal drilling in trade and industrial applications. Built from high speed steel (HSS) with an oxide coating, this bit measures 5.5 mm (0.2165 inches) in diameter and 3.661 inches overall length. The 118-degree standard point angle is web-thinned for easier penetration and reduced thrust. With a straight-cylindrical shank and right-hand spiral flute, it seats securely in standard drill chucks and delivers consistent chip evacuation. HVAC techs, plumbers, electricians, and general contractors reach for this size when drilling pilot holes, sheet metal, and light structural steel.

The C71260 is suited for use in stationary drill presses, handheld power drills, and cordless drivers in both residential and commercial job-site environments. Its 5.5 mm diameter falls in the 5.00-6.00 mm size range and is a common metric sizing for fastener clearance holes and conduit or tubing access points. The two-flute regular spiral geometry handles a broad range of ferrous and non-ferrous materials under general-purpose cutting conditions.

Key Features

• High speed steel construction with oxide coating for wear resistance on general-purpose materials
• 118-degree standard point angle with web thinning for reduced entry thrust
• Right-hand cut, two-flute regular spiral for efficient chip removal
• Straight-cylindrical shank compatible with standard drill chucks
• Meets ASME B94.11M and DIN 338 standards for consistent dimensional accuracy
• Flute-to-diameter ratio of 4xD provides clearance depth suitable for typical jobber-length applications

Compatibility

Designed as an OEM-style general-purpose jobber-length drill bit compatible with standard 3-jaw and keyless drill chucks that accept a 0.2165-inch straight-cylindrical shank.

Installation Notes

Installation of this drill bit should be performed by qualified trade professionals following standard drill press or handheld tool safety practices. Secure the shank fully into the chuck and verify runout before drilling. Always wear appropriate eye protection, and clamp workpieces securely to prevent movement. Confirm the tool and workpiece are stationary before chuck key removal or bit changes.
