Cleveland C58563 Spiral Flute Tap 1/4-20 Unc Bottoming Hss

Product Description

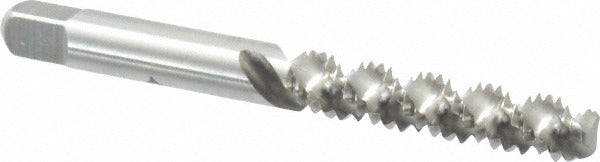

The CLEVELAND C58563 is a spiral flute bottoming tap designed for blind hole threading in metal workpieces. It cuts a 1/4-20 UNC right-hand thread to a 3B class of fit with a H3 thread limit, making it well suited for close-tolerance tapping work. The tap is manufactured from high speed steel with a bright, uncoated finish. It features three right-hand flutes with a 52-degree helix angle and a fast flute style that efficiently evacuates chips upward and out of the blind hole. Overall length is 2.5 inches with a thread length of 0.63 inches. Machinists, tool and die makers, and maintenance technicians use this tap by hand or in CNC and manual tapping operations.

This bottoming tap is intended for blind hole applications where threads must extend as close to the bottom of the hole as possible. It is suited for use in alloy tool steel, carbon steel, and stainless steel. The bottoming chamfer style — typically one to two thread leads — allows threading into holes where a plug or taper tap cannot reach the required thread depth. It fits standard tap wrenches and tapping heads sized for its 0.255-inch shank diameter. This is a single-piece unit sold individually.

Key Features

• Bottoming chamfer for threading close to the bottom of blind holes
• 52-degree helix angle with fast flute style for efficient chip evacuation in blind holes
• High speed steel construction for durability across ferrous workpiece materials
• 3B class of fit with H3 thread limit for consistent, close-tolerance threads
• Right-hand flute and right-hand thread — standard orientation for most tapping setups
• Bright, uncoated finish compatible with a wide range of cutting fluids

Compatibility

Rated for use in alloy tool steel, carbon steel, and stainless steel. Part of CLEVELAND Series 1093 and 1094. Designed for standard 1/4-20 UNC blind hole tapping applications where a bottoming chamfer is required.

Installation Notes

This tap is installed by a machinist or maintenance technician using a tap wrench, tapping head, or CNC tapping cycle. Always drill the correct tap drill size and ensure hole depth exceeds the required thread depth before tapping. Use an appropriate cutting fluid for the workpiece material, particularly when tapping stainless steel. Back the tap out periodically to break and clear chips when tapping by hand.
