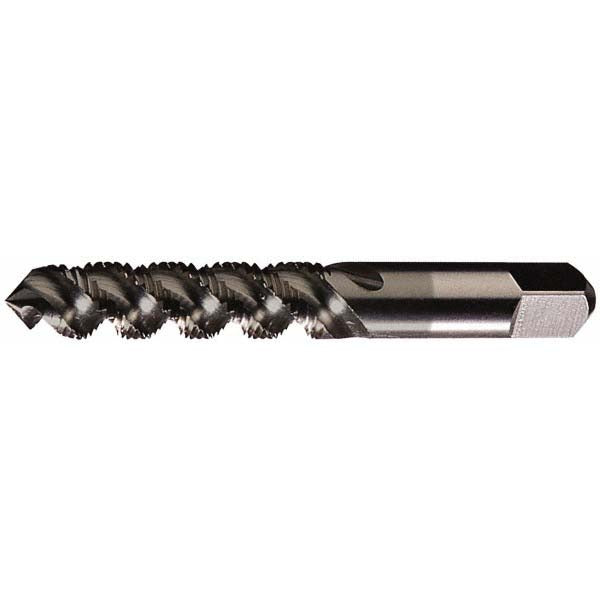

Cleveland C58449 Spiral Flute Tap 3/8-16 Unc Bottoming Hss

Product Description

The CLEVELAND C58449 is a spiral flute bottoming tap designed for cutting internal threads in blind holes where the thread must run close to the bottom of the bore. Built from high speed steel with an oxide finish, it cuts 3/8-16 UNC threads to a 2B class of fit with a right-hand thread direction. The 52-degree helix angle and fast flute style help evacuate chips up and out of the hole, which is critical when threading blind holes in aluminum, non-ferrous metals, and steel. This tap is sized for use in machine tapping setups operated by licensed machinists and tool and die professionals.

The C58449 is suited for production and maintenance threading operations in blind hole applications where a standard plug or taper tap cannot reach the required thread depth. It is appropriate for use in aluminum, non-ferrous metals, and steel workpieces. The bottoming chamfer leaves only 1 to 2 incomplete threads at the bottom of the hole, maximizing usable thread engagement. It is commonly used in machine shops, manufacturing facilities, and industrial maintenance environments.

Key Features

• Bottoming chamfer for threading close to the bottom of blind holes
• 52-degree helix angle with fast flute style for efficient chip evacuation
• High speed steel construction for durability across aluminum, non-ferrous metals, and steel
• Oxide finish provides mild corrosion resistance and reduces friction during cutting
• H3 thread limit for consistent 2B class of fit tolerances
• Right-hand flute and right-hand thread for standard machine tapping operation

Compatibility

Designed as an OEM-style replacement or direct-use spiral flute bottoming tap for 3/8-16 UNC blind hole threading applications in aluminum, non-ferrous metals, and steel.

Installation Notes

Installation should be performed by a qualified machinist using a tapping machine, CNC machine, or drill press with appropriate tapping chuck and cutting fluid suited for the workpiece material. Ensure the workpiece is securely fixtured and the spindle is properly aligned before beginning the tapping cycle. Power down and de-energize any machine before changing or setting tooling. Do not use this tap in through-hole applications where a plug or spiral point tap would be more appropriate.
