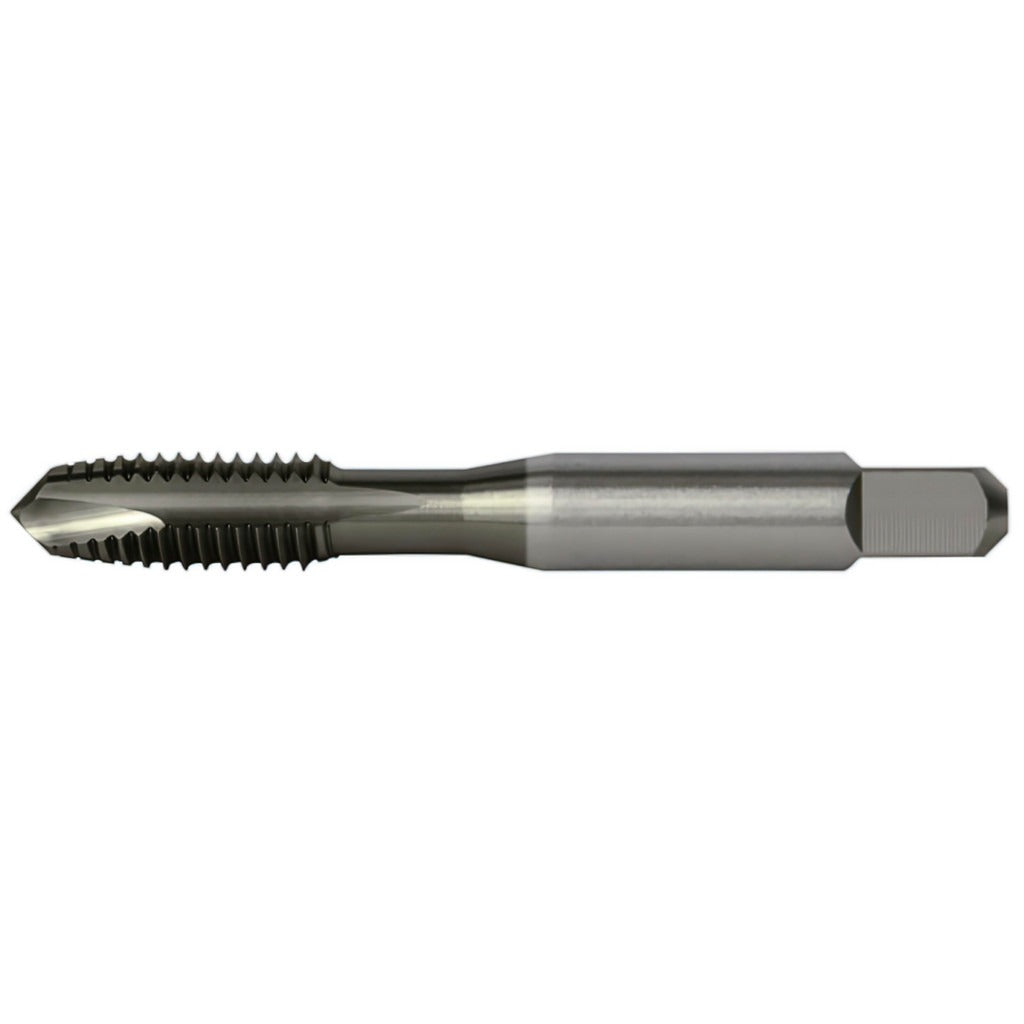

Cleveland C57192 Spiral Point Tap 7/16-14 Unc Hss Ticn

Product Description

The CLEVELAND C57192 is a spiral point tap designed for through-hole threading in metal workpieces. It cuts a 7/16-14 UNC thread profile using three flutes and a plug chamfer to progressively engage the material. The spiral point geometry pushes chips forward ahead of the tap, making it well-suited for production through-hole applications where chip evacuation is critical. Manufactured from high speed steel (HSS) with a TiCN coating, it carries an H3 thread limit and a Class 2B fit, providing the tolerance control required for standard fastener clearances in commercial and industrial machining work. Installation is performed by machinists and tool-and-die professionals.

This tap is intended for through-hole threading operations in steel, stainless steel, and cast iron. The plug chamfer style distributes cutting load across several leading threads, making it appropriate for both hand tapping and machine tapping setups in job shop or production environments. The right-hand thread direction is standard for the vast majority of UNC fastener applications. Coolant-through capability is not available on this tap, so external coolant or cutting fluid application is recommended when tapping harder alloys.

Key Features

• Spiral point geometry pushes chips forward for clean through-hole threading
• TiCN coating improves wear resistance and tool life in ferrous materials
• H3 thread limit with Class 2B fit for standard UNC tolerance control
• Plug chamfer for smooth entry and distributed cutting load
• Right-hand cutting direction, compatible with standard machine and hand tap holders
• Suitable for steel, stainless steel, and cast iron material applications

Compatibility

Designed for through-hole threading in steel, stainless steel, and cast iron workpieces requiring a 7/16-14 UNC Class 2B thread. Fits standard tap holders and chucks accepting a 0.3230-inch shank diameter.

Installation Notes

This tap should be used by qualified machinists following standard tapping procedures for the workpiece material. Ensure the spindle and workpiece are secured before beginning the tapping operation. Apply appropriate cutting fluid or external coolant, particularly when tapping stainless steel or cast iron. Inspect the tap for wear or chipping before each use and replace if thread quality degrades.
