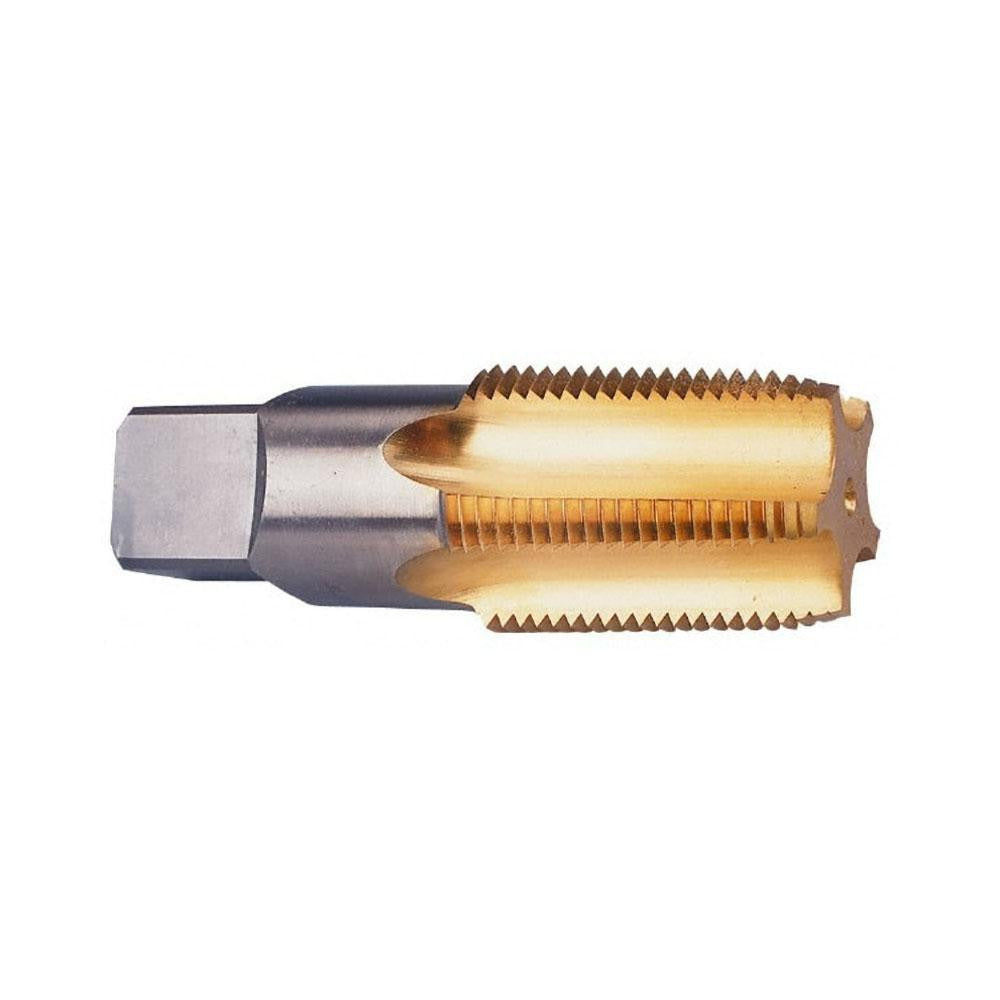

Cleveland C56700 Npt Pipe Tap 1/16-27 Tin Hss

Product Description

The CLEVELAND C56700 is a standard NPT pipe tap designed for cutting internal tapered pipe threads in ferrous and alloy materials. Built from high speed steel with a titanium nitride (TiN) coating, this tap delivers improved wear resistance and longer service life compared to uncoated HSS taps. It cuts a 1/16-27 NPT thread with 4 flutes and a regular hook, making it well suited for threading small-diameter pipe ports in cast iron, stainless steel, and carbon steel workpieces. The overall length is 2.125 inches with a thread length of 0.6875 inches. Machinists, pipefitters, and plumbing fabricators working in shop or field conditions rely on this size for instrument and small-bore pneumatic fittings.

The C56700 is used wherever a 1/16-27 NPT internal thread is required, including small pipe ports, hydraulic manifolds, pneumatic fittings, instrumentation taps, and pressure gauge connections. The 1/16-27 NPT size is common in residential and commercial plumbing rough-in as well as industrial instrumentation applications. The 4-flute design provides adequate chip clearance for through and blind holes in the listed compatible materials. This tap belongs to the Cleveland 965TN series, which is engineered for NPT threading in production and maintenance environments.

Key Features

• 1/16-27 NPT thread form for tapered pipe thread applications
• High speed steel construction for durability in ferrous materials
• TiN coating extends tool life and reduces friction during cutting
• 4-flute, regular hook geometry for controlled chip evacuation
• Shank diameter of 0.3125 inches fits standard tap holders and T-handles
• Part of the Cleveland 965TN series for consistent NPT threading performance

Compatibility

Rated for use in cast iron, stainless steel, and carbon steel. Designed as a standard NPT pipe tap for 1/16-27 thread applications in production machining and maintenance fitting work.

Installation Notes

NPT pipe taps are installed by machinists, pipefitters, and maintenance technicians using a tap wrench, T-handle, or machine spindle. Always use a cutting fluid or tapping oil appropriate for the workpiece material, particularly when threading stainless steel or cast iron. Back the tap out periodically to break and clear chips and prevent tap breakage. Ensure the drilled hole meets the recommended tap drill size for 1/16-27 NPT before threading.
