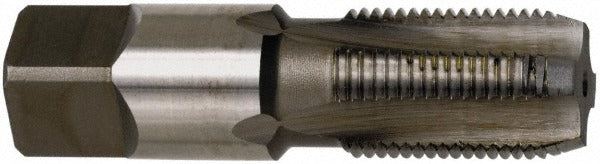

Cleveland C55685 Pipe Tap 1/2-14 Nptf 4 Flute Hss Tin

Product Description

The CLEVELAND C55685 is a standard pipe tap designed for cutting 1/2-14 NPTF threads in ferrous and hard metals. Built from high speed steel with a titanium nitride (TiN) coating, this tap offers increased surface hardness and wear resistance compared to uncoated HSS tools. It features 4 flutes with a regular hook geometry, a thread length of 1.375 inches, and an overall length of 3.125 inches. The TiN finish reduces friction during threading, extending tool life in production and field service environments. Licensed machinists, pipefitters, and plumbers use this tap when creating pressure-rated pipe thread connections.

This tap is suited for threading 1/2-14 NPTF pipe threads in cast iron, stainless steel, and steel workpieces. Typical applications include fabricating threaded pipe fittings, manifolds, hydraulic blocks, and valve bodies in commercial plumbing, industrial piping, and mechanical service work. The NPTF thread form produces a pressure-tight seal through thread interference, making it the correct choice where dryseal performance is required without relying solely on sealant. It is sold individually with a minimum order quantity of 3.

Key Features

• NPTF dryseal thread form — 1/2-14 thread size for pressure-tight connections
• High speed steel construction for durability in ferrous metals
• TiN coating increases surface hardness and reduces cutting friction
• 4-flute regular hook geometry for balanced chip flow
• Thread length of 1.375 inches; overall length of 3.125 inches
• Shank diameter of 0.6875 inches with a 0.515-inch square drive

Compatibility

Designed for cutting 1/2-14 NPTF threads in cast iron, stainless steel, and steel. Part of the Cleveland 975TN series.

Installation Notes

Pipe taps should be installed by qualified machinists, pipefitters, or plumbers using a properly sized tap wrench or machine holder matched to the square shank. Always use appropriate cutting fluid for the workpiece material — particularly important with stainless steel to prevent galling. Ensure the workpiece is securely clamped and the tap is started square to the hole before applying cutting pressure. De-burr and clean threads after tapping before assembling any pressure-rated fittings.
