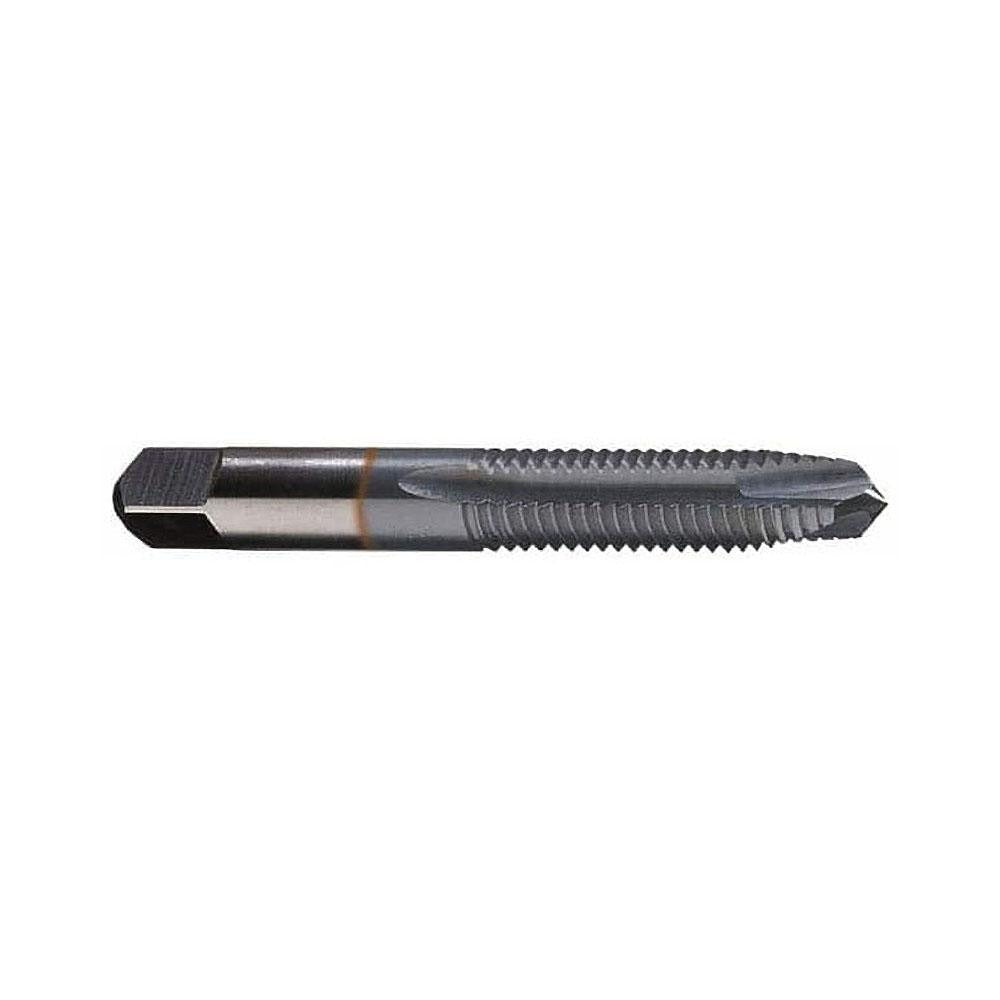

Cleveland C55384 Spiral Point Tap 12-24 Unf Ticn Hss

Product Description

The CLEVELAND C55384 is a spiral point plug tap designed for through-hole threading in ferrous and hard materials. Built from high speed steel with a titanium carbonitride (TiCN) finish, it cuts a 12-24 UNF thread to a 2B class of fit with an H3 thread limit. The three-flute spiral point geometry pushes chips forward ahead of the cutting zone, keeping the flutes clear during through-hole applications. At 2.38 inches overall length with a 0.5-inch thread length, this tap is sized for compact fastener applications. Licensed HVAC, plumbing, and mechanical trades use this tap when re-tapping or threading new holes in cast iron, stainless steel, and carbon steel components.

The C55384 is well suited to production and service environments where through-hole tapping is required in cast iron, stainless steel, and steel workpieces. Its plug chamfer provides a moderate lead-in for starting the cut in a pre-drilled hole. The TiCN coating extends tool life in abrasive and hard materials compared to uncoated HSS taps. This tap belongs to the Cleveland Series 1011TICN line and is sold individually.

Key Features

• Spiral point geometry pushes chips forward for clean through-hole threading
• TiCN coating improves wear resistance in cast iron, stainless steel, and steel
• High speed steel construction handles a wide range of ferrous materials
• Plug chamfer provides controlled lead-in for consistent thread starts
• H3 thread limit and 2B class of fit meet standard fastener tolerance requirements
• Right-hand cut, no coolant-through requirement, suitable for general machine tapping

Compatibility

Designed for through-hole threading applications in cast iron, stainless steel, and steel. Compatible with standard tap handles and machine tap holders sized for a 0.22-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician using a properly sized tap wrench or machine tap holder. Ensure the workpiece is securely fixtured and the pilot hole is drilled to the correct tap drill size for a 12-24 UNF thread before beginning. Apply an appropriate cutting fluid for the workpiece material to reduce heat and extend tap life. Do not force the tap if resistance increases sharply, as breakage in blind or undersized holes is a common failure point.
