Cleveland C55309 Spiral Point Tap 10-24 Unc Hss Tin

Product Description

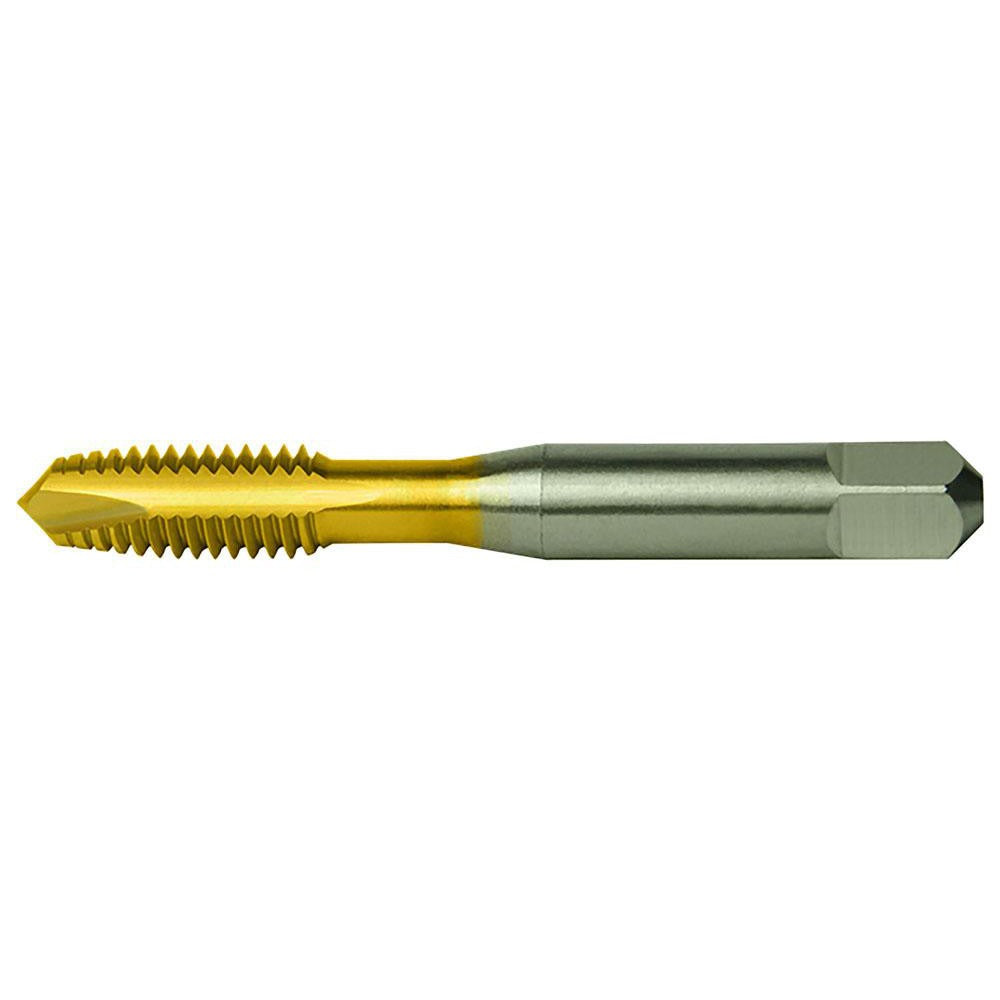

The CLEVELAND C55309 is a spiral point tap designed for through-hole threading in metal workpieces. It cuts a 10-24 UNC thread profile with a plug chamfer and a 2-flute spiral point geometry that pushes chips ahead of the cut rather than packing them in the flute. The tap is manufactured from high speed steel (HSS) and coated with titanium nitride (TiN) for improved wear resistance and reduced friction during cutting. Thread limit is H7 with a Class 2B fit, making it suitable for standard tolerance threaded fastener applications. The thread length is 0.5 inches. This tap is installed by machinists, maintenance technicians, and toolroom professionals.

The C55309 is suited for through-hole threading operations in cast iron and steel workpieces on drill presses, CNC machining centers, and hand-tapping setups. The spiral point design is particularly effective in through-holes where chips can be pushed forward and cleared cleanly. The right-hand thread direction is standard for the vast majority of fastener applications. This tap is appropriate for both production and repair threading at the 10-24 UNC specification.

Key Features

• 10-24 UNC thread form with plug chamfer for standard through-hole entry
• 2-flute spiral point geometry pushes chips forward, reducing chip packing
• High speed steel construction provides toughness across a range of cutting conditions
• TiN coating improves surface hardness and extends tool life in cast iron and steel
• H7 thread limit and Class 2B fit for standard tolerance threaded assemblies
• Right-hand cut, 0.5 inch thread length, Series 1011TN

Compatibility

Designed for through-hole threading in cast iron and steel. Compatible with standard 10-24 UNC tapping applications on CNC machines, drill presses, and manual tapping fixtures that accept a 0.194 inch shank diameter.

Installation Notes

This tap should be installed by qualified machinists or maintenance technicians familiar with tapping speeds, feeds, and cutting fluid selection for the workpiece material. Ensure the workpiece is securely clamped and the tap is properly aligned before beginning the cut to avoid tap breakage. Use an appropriate cutting fluid or tapping compound for cast iron or steel. Follow shop safety procedures and applicable standards when operating machine tools.
