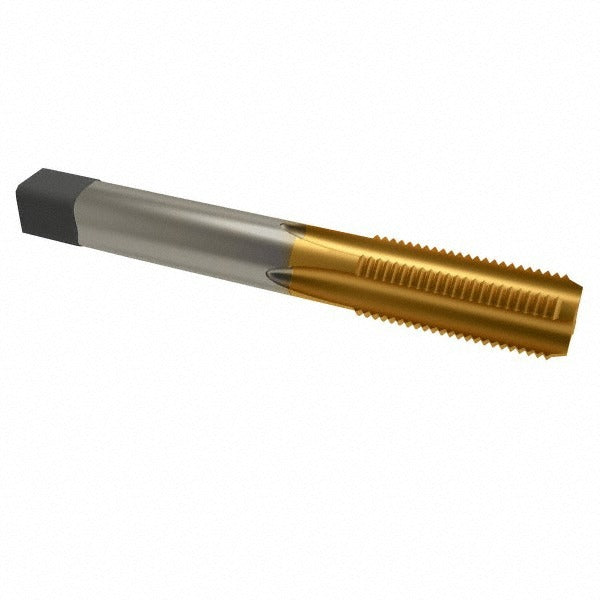

Cleveland C55244 Bottoming Hand Tap 3/4-10 Unc Tin Hss

Product Description

The CLEVELAND C55244 is a 3/4-10 UNC bottoming hand tap designed for cutting internal threads in both blind holes and through-holes. Built from high speed steel (HSS) with a titanium nitride (TiN) coating, this tap provides extended tool life and reduced friction during threading operations. The 4-flute straight flute geometry produces clean, consistent threads in a right-hand direction. It carries a Class of Fit 2B and Thread Limit H3, making it suitable for standard tolerance threaded assemblies. At 4.25 inches overall length with a 2-inch thread length, it fits standard tap wrenches used in machine shop and field work.

This tap is intended for threading ferrous and non-ferrous workpieces including alloy steel, carbon steel, aluminum, and free-machining stainless steel. The bottoming chamfer style allows threads to be cut close to the bottom of a blind hole, which is critical in applications where full thread engagement depth is required. It is commonly used by machinists, maintenance technicians, and tooling professionals working on equipment repair, fabrication, and production threading tasks. Part of the Cleveland Series 1003TN, it is sold individually.

Key Features

• Bottoming chamfer for threading to the base of blind holes
• TiN coating reduces friction and extends cutting life across multiple materials
• High speed steel construction withstands heat and wear during threading
• 4-flute straight flute design provides chip clearance and thread consistency
• Class of Fit 2B and Thread Limit H3 for standard tolerance applications
• Right-hand thread direction, 3/4-10 UNC specification

Compatibility

Designed for use in alloy steel, carbon steel, aluminum, and free-machining stainless steel workpieces requiring 3/4-10 UNC internal threads. Suitable for blind hole and through-hole threading applications.

Installation Notes

This tap is installed using a standard hand tap wrench sized for the 0.59-inch shank diameter. Always secure the workpiece and ensure the tap is started square to the hole to prevent thread damage or tap breakage. Apply appropriate cutting fluid for the workpiece material before and during tapping. Follow shop safety procedures and wear eye protection when performing manual threading operations.
