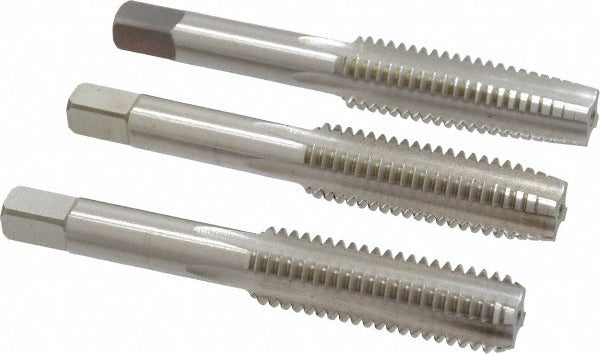

Cleveland C54731 Tap Set 1/2-13 Unc Hss 3 Piece

Product Description

The CLEVELAND C54731 is a three-piece tap set designed to cut 1/2-13 UNC internal threads in metalworking applications. The set includes bottoming, plug, and taper chamfer taps, allowing a technician to start, advance, and finish threads in a single workflow without switching tool brands. All three taps are manufactured from high speed steel with a bright finish and feature a 4-flute geometry that provides clean chip evacuation. Overall length is 3.375 inches, thread length is 0.94 inches, and the thread limit is H3, indicating a tolerance suited for standard-fit threaded fasteners in ferrous and non-ferrous materials.

This tap set is used in machine shops, maintenance facilities, and fabrication environments wherever 1/2-13 UNC threads must be tapped by hand or machine. The three-chamfer combination makes it practical for through holes, blind holes, and starting in hard-to-reach locations. It is commonly used by millwrights, machinists, HVAC equipment fabricators, and industrial maintenance technicians who need a complete threading solution for a single thread size. Right-hand thread direction matches standard UNC fastener orientation.

Key Features

• Three-piece set includes bottoming, plug, and taper chamfer taps for complete thread-cutting workflow
• 1/2-13 UNC thread form, right-hand direction, H3 thread limit for standard tolerance fit
• High speed steel construction for durability in ferrous and non-ferrous metals
• 4-flute design promotes efficient chip removal during cutting
• Bright finish with 3.375 inch overall length and 0.94 inch thread length
• Series 1004 designation for consistent replacement and sourcing

Compatibility

Designed as an OEM-style replacement or direct-use tap set for any application requiring 1/2-13 UNC internal threads tapped in standard metalworking operations.

Installation Notes

Tap installation should be performed by a qualified machinist or maintenance technician familiar with threading operations. Always secure the workpiece and use appropriate cutting fluid to extend tap life and improve thread quality. Power down any machine tool before mounting or removing taps. Follow standard shop safety practices and applicable facility guidelines when operating tapping equipment.
