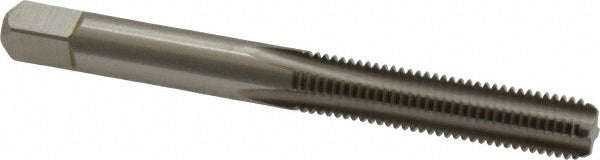

Cleveland C54468 Hand Tap 1/4-28 Bottoming Hss Unf

Product Description

The CLEVELAND C54468 is a 1/4-28 bottoming hand tap designed for cutting internal threads in blind and through holes. Built from high speed steel (HSS) with a bright uncoated finish, it runs four straight flutes to clear chips and maintain thread accuracy in a range of metals. The bottoming chamfer allows threading close to the bottom of a blind hole, making it the right choice when thread engagement depth is critical. At 2.5 inches overall length with a 0.63-inch threaded section, this tap fits standard tap wrenches and is suited to manual hand-tapping operations in a machine shop or field environment.

This tap is used in production and maintenance machining wherever 1/4-28 UNF internal threads are required. The UNF (Unified National Fine) thread form is common in applications requiring higher thread engagement strength or vibration resistance than coarse thread, including precision assemblies, fastened assemblies in alloy and carbon steel components, and aluminum fabrications. It is appropriate for both blind hole and through-hole threading operations. The Class 2B fit and H2 thread limit provide standard tolerance threading consistent with most UNF fastener applications.

Key Features

• Bottoming chamfer for threading to the bottom of blind holes
• 4-flute straight flute geometry for chip clearance in manual tapping
• High speed steel construction for durability across common workpiece metals
• Bright uncoated finish — no coating buildup to affect thread tolerance
• H2 thread limit and Class 2B fit for standard UNF tolerance compliance
• Fits standard tap wrenches via 5/16-inch square drive tang

Compatibility

Designed for manual hand-tapping of 1/4-28 UNF threads. Compatible with alloy steel, carbon steel, aluminum, and free-machining stainless steel workpieces. Fits standard tap wrenches accepting a 0.191-inch square drive.

Installation Notes

Use appropriate cutting fluid or tapping compound for the workpiece material before starting the tap. Secure the workpiece firmly and align the tap perpendicular to the drilled hole before applying torque. Back off periodically to break and clear chips, especially in blind holes. Follow standard shop safety practices, including eye protection and proper workholding.
