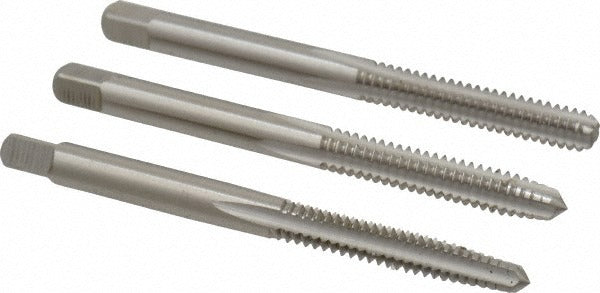

Cleveland C54332 Tap Set 10-24 Unc Hss Bright Finish

Product Description

The CLEVELAND C54332 is a 3-piece tap set designed for cutting 10-24 UNC internal threads in metal workpieces. The set includes three chamfer styles — bottoming, plug, and taper — allowing the technician to start, continue, and finish a threaded hole in a single workflow without switching tap sets. Constructed from high speed steel (HSS) with a bright finish, the C54332 measures 2.375 inches in overall length with a 0.5 inch thread length. Right-hand thread direction follows standard UNC conventions. This set is appropriate for machinists, maintenance technicians, and trade professionals who require clean, accurate 10-24 UNC threads in steel, aluminum, or similar materials.

This tap set is suited for both shop and field use wherever 10-24 UNC threaded holes are required. Typical applications include creating or repairing machine screw threads in electrical panels, HVAC equipment frames, enclosures, and general mechanical assemblies. The three-piece configuration makes it practical for blind holes — where the bottoming tap clears threads to the bottom of the hole — as well as through holes where taper and plug taps provide cleaner thread engagement during initial cutting passes.

Key Features

• Three-piece set includes bottoming, plug, and taper chamfer styles for complete threading workflow
• High speed steel construction for durability across a range of workpiece materials
• 10-24 UNC thread standard, right-hand direction, H3 thread limit
• 2.375 inch overall length with 0.5 inch thread length
• 3 flutes for efficient chip evacuation during cutting
• Bright finish — no coating to add dimensional variation at the cutting edge

Compatibility

Designed as an OEM-style replacement or standard tooling solution for applications requiring 10-24 UNC right-hand internal threads, Series 1004.

Installation Notes

Tap installation is performed by machinists or qualified maintenance technicians. Always secure the workpiece before tapping and use an appropriate cutting fluid to extend tap life and improve thread finish. Begin with the taper tap to start the thread, follow with the plug tap, and finish with the bottoming tap when threading to the bottom of a blind hole. Inspect the tap for wear or damage before each use — a chipped or dull tap can seize in the hole and break.
