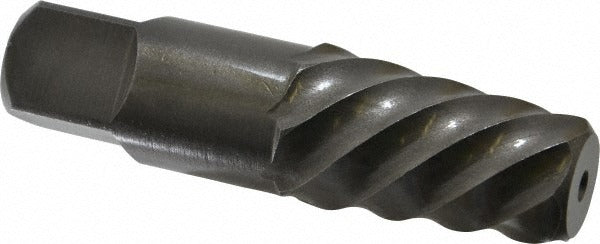

Cleveland C53659 Spiral Flute Screw Extractor Size 9

Product Description

The CLEVELAND C53659 is a Size 9 spiral flute screw extractor designed to remove broken or seized screws in the 1-3/4 to 2-1/8 inch diameter range. Also known as an EZY-OUT extractor, it features a left-hand spiral flute design that bites into damaged fastener material as torque is applied, drawing the broken piece out of the bore. Constructed from carbon steel, the C53659 measures 4-5/8 inches overall length, giving technicians adequate grip and leverage during extraction. It is a single-piece tool suited for use in machine shops, maintenance bays, and field service environments.

This extractor is used wherever large-diameter fasteners have sheared flush or broken below the surface. Typical applications include heavy equipment maintenance, industrial machinery repair, structural fastener removal, and plant maintenance work. The spiral flute design is effective on bolts and screws that have been damaged by corrosion, overtorque, or impact. Machinists, millwrights, and maintenance mechanics are the primary users of this size range.

Key Features

• Spiral flute geometry engages broken fastener material and extracts as torque increases
• Sized for 1-3/4 to 2-1/8 inch diameter screws and bolts
• 4-5/8 inch overall length provides leverage and clearance in most workholding setups
• Carbon steel construction withstands the torsional stress of extraction work
• EZY-OUT style design compatible with standard square-drive tap wrenches and extracting tools
• Single-piece unit, sold individually

Compatibility

Designed for use on broken or damaged screws and bolts in the 1-3/4 to 2-1/8 inch size range. Accepts drive from standard square-drive tap wrenches sized appropriately for a Size 9 extractor.

Installation Notes

Extraction work should be performed by a qualified machinist or maintenance mechanic familiar with screw extraction procedures. Before use, drill a pilot hole centered in the broken fastener to the depth and diameter specified for a Size 9 extractor. Apply steady, controlled torque using a tap wrench or equivalent driver — do not use impact tools on screw extractors, as shock loading can cause fracture. Secure the workpiece firmly before beginning extraction to prevent movement.
