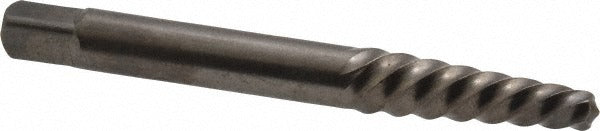

Cleveland C53654 Spiral Flute Screw Extractor Size 4

Product Description

The CLEVELAND C53654 is a Size 4 spiral flute screw extractor designed to remove broken or seized screws with shank diameters from 7/16 to 9/16 inches. The spiral flute design bites into the damaged fastener as reverse torque is applied, gripping the material and backing the screw out without damaging the surrounding workpiece. Manufactured from carbon steel, the C53654 measures 2-7/8 inches in overall length. This tool is used by HVAC technicians, plumbers, electricians, and general maintenance trades whenever a fastener head has stripped, broken flush, or snapped below the surface.

The C53654 is suited for field and shop use where broken fasteners are encountered in metal, wood, or composite materials. It performs in residential and light commercial service applications. At Size 4, it handles the mid-range fastener diameters common in mechanical equipment housings, access panels, and structural connections. It is sold individually and is ready to use with a standard tap wrench or locking pliers that accept the square drive shank.

Key Features

• Spiral flute geometry applies increasing grip as reverse torque increases
• Sized for screws from 7/16 to 9/16 inches in diameter
• Carbon steel construction for durability in repeated service use
• 2-7/8 inch overall length provides clearance in standard access conditions
• EZY-OUT style design compatible with standard tap wrenches and locking pliers
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed for use with broken or damaged screws measuring 7/16 to 9/16 inches in shank diameter. Compatible with standard tap wrenches and adjustable locking pliers that accept a square drive shank.

Installation Notes

Before using a screw extractor, power down or de-energize the equipment and relieve any system pressure as required by the application. Drill a pilot hole into the center of the broken fastener using the appropriate bit size before inserting the extractor. Apply steady, controlled reverse torque — avoid impact tools, which can snap the extractor. Disposal of broken extractors embedded in a workpiece may require professional EDM or machining services, so use the correct size and proceed carefully.
