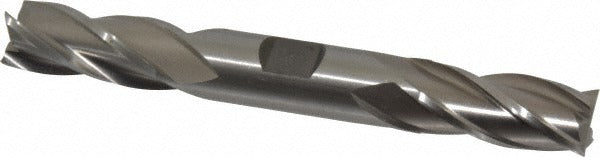

Cleveland C52186 Square End Mill 3/4 in 4 Flute Cobalt

Product Description

The CLEVELAND C52186 is a cobalt double-end square end mill designed for material removal in demanding machining environments. Built from M42 cobalt high-speed steel, it delivers heat and wear resistance needed when cutting high-temperature alloys, stainless steel, and carbon steel. The tool measures 0.75 inches in cutting diameter with a 1.625-inch length of cut, a 0.75-inch straight cylindrical shank with Weldon flat, and a 5.625-inch overall length. Four right-hand spiral flutes at a 30-degree helix angle promote chip evacuation and stable cutting action. This is a centercutting tool, allowing plunge entry into workpieces without pre-drilling.

The C52186 is suited for milling operations in job shops, aerospace, and general manufacturing where high-performance tooling is required for difficult-to-machine materials. Its regular-length geometry and double-end configuration make it a practical choice for profiling, slotting, and peripheral milling on CNC machining centers and manual knee mills. Primary workpiece materials include high-temperature alloys, stainless steel, and steel. The HDC-4C series is engineered specifically for these material groups where standard HSS tooling falls short.

Key Features

• M42 cobalt construction for elevated heat resistance in tough alloys and stainless steel
• Double-end design extends tool life and reduces per-edge cost
• Centercutting capability allows direct plunge milling without a pilot hole
• 30-degree helix spiral flute promotes efficient chip evacuation
• Weldon flat on straight cylindrical shank provides positive drive and reduced slippage
• Right-hand cut and right-hand flute, uncoated finish

Compatibility

Designed for use with high-temperature alloys, stainless steel, and steel workpieces. Fits standard 3/4-inch end mill holders and collet chucks with Weldon flat retention. Part of the CLEVELAND HDC-4C series.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Secure the shank fully in a properly sized end mill holder or collet chuck, ensuring the Weldon flat is engaged by the set screw before operation. Verify spindle speed and feed rate are appropriate for the workpiece material before engaging the cut. Inspect the cutting edges and shank for damage before each use.
