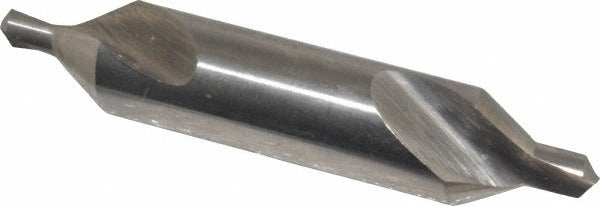

Cleveland C46269 Combo Drill Countersink Size 7 Hss

Product Description

The CLEVELAND C46269 is a combination drill and countersink designed for simultaneous drilling and countersinking in a single pass. Built from high-speed steel with a bright, uncoated finish, this tool features a 5/8 inch body diameter, a 1/4 inch drill point diameter, and a 118-degree drill point angle. The 60-degree included angle produces a standard countersink profile suited to flat-head fastener seating. Right-hand cut geometry and a plain cutting edge style make this a straightforward, reliable choice for machinists and fabricators working in production or maintenance environments.

This combo drill countersink is suited for use in drill presses, CNC machining centers, and manual milling setups. It is rated for work in alloy tool steel, carbon steel, cast iron, and aluminum. The double-end type design and non-tapered shank allow direct chucking without adapters in standard setups. Typical applications include countersinking for flat-head cap screws and machine screws in metalworking, fabrication shops, and industrial maintenance operations.

Key Features

• Combination drill and countersink in one tool — drills pilot hole and countersink simultaneously
• High-speed steel construction for durability across a range of ferrous and non-ferrous metals
• 118-degree drill point angle with 60-degree included countersink angle for standard flat-head fastener seating
• Bright, uncoated finish — suitable for general-purpose metalworking applications
• Right-hand cut with plain cutting edge style for consistent, predictable chip evacuation
• Double-end type for extended tool life

Compatibility

Designed for use in alloy tool steel, aluminum, carbon steel, and cast iron workpieces. Compatible with standard drill chucks and collet systems accepting a 5/8 inch body diameter shank.

Installation Notes

Installation should be performed by a qualified machinist or tooling professional. Secure the workpiece firmly before operation and confirm the spindle is fully stopped before changing or adjusting the tool. Use appropriate cutting fluid for ferrous materials to extend tool life and maintain cut quality. Always verify chuck or collet grip is secure before initiating a cut.
