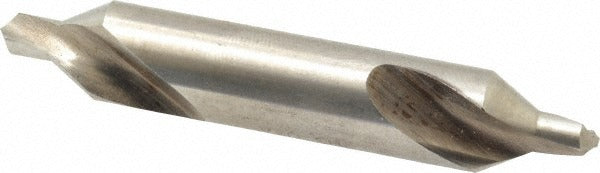

Cleveland C46268 Combo Drill Countersink Size 6 Hss

Product Description

The CLEVELAND C46268 is a combination drill and countersink designed to perform spot drilling and countersinking in a single operation. Built from high-speed steel with a bright, uncoated finish, this tool features a 0.5-inch body diameter, a 7/32-inch drill point diameter, and a 60-degree included angle that produces clean, accurate countersinks. The 118-degree drill point angle and plain cutting edge style make it well suited for right-hand cutting on a variety of ferrous and non-ferrous materials. It is a standard choice for machinists, fabricators, and maintenance technicians working with drill presses, lathes, or CNC machining centers.

This combo drill countersink is designed for use in metal fabrication shops, maintenance and repair operations, and production environments where efficient hole preparation is required. It performs countersinking and drilling simultaneously on alloy tool steel, aluminum, carbon steel, and cast iron workpieces. The double-end style maximizes tool life by providing two usable ends, extending service intervals in high-use applications.

Key Features

• Combination drill and countersink removes the need for a separate spotting operation
• High-speed steel construction provides durability across a range of metal workpiece materials
• 60-degree included angle for standard countersink profiles
• 118-degree drill point angle for accurate center spotting
• Double-end design extends usable tool life
• Bright uncoated finish suitable for use with cutting fluids

Compatibility

Designed as a standard trade size 6 combo drill countersink compatible with drill presses, lathes, and machining centers that accept 0.5-inch shank tooling. Suitable for use on alloy tool steel, aluminum, carbon steel, and cast iron workpieces.

Installation Notes

Installation and operation should be performed by qualified machinists or tooling technicians familiar with rotating cutting tools. Secure the workpiece and ensure the machine spindle is fully stopped before installing or removing the tool. Use appropriate cutting fluid for the workpiece material to manage heat and extend tool life. Follow all applicable shop safety practices and machine guarding requirements during operation.
