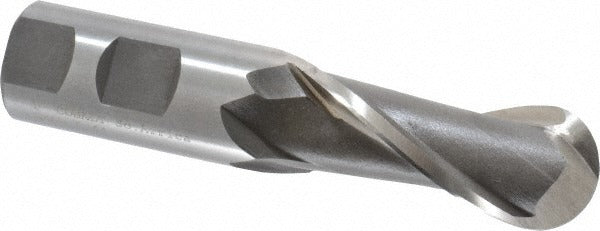

Cleveland C42141 Ball End Mill 1in 2 Flute Hss

Product Description

The CLEVELAND C42141 is a single-end ball end mill designed for finishing operations in ferrous and cast iron applications. Built from high speed steel with a 30-degree helix angle, this tool delivers controlled chip evacuation and smooth surface finishes in right-hand cutting and right-hand flute configurations. The ball-nose geometry allows for contoured surface milling, radius profiling, and slotting where a flat-bottom tool is not suitable. With a 1 inch mill diameter and 2-flute spiral flute design, it is well suited for moderate feed rates in finishing passes on steel and cast iron workpieces.

This end mill fits into standard CNC machining centers, manual knee mills, and toolroom equipment using a 1 inch straight shank. The HG-2B series targets finishing work rather than aggressive material removal, making it appropriate for tool and die shops, maintenance machining, and precision part production. Primary workpiece materials include cast iron and steel. The uncoated HSS construction is compatible with conventional coolant flood strategies, though this tool does not support coolant-through delivery.

Key Features

• Ball-nose geometry for contoured surfaces, radius profiles, and 3D finishing passes
• High speed steel construction for toughness and regrindability
• 30-degree right-hand helix for efficient chip flow in steel and cast iron
• 2-flute spiral design optimized for finishing rather than roughing
• Uncoated surface compatible with standard flood coolant
• Single-end configuration with a 1 inch straight shank for direct collet or holder mounting

Compatibility

Designed as a direct-fit replacement or standard toolroom end mill for machining centers and manual mills accepting a 1 inch straight shank. Primary workpiece materials listed by the manufacturer are cast iron and steel.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is locked out before loading or unloading the tool. Seat the shank fully in a properly sized end mill holder or collet and torque the retention mechanism to the holder manufacturer's specification. Confirm runout with a dial indicator before beginning the cut, as excessive runout accelerates edge wear and degrades surface finish quality.
