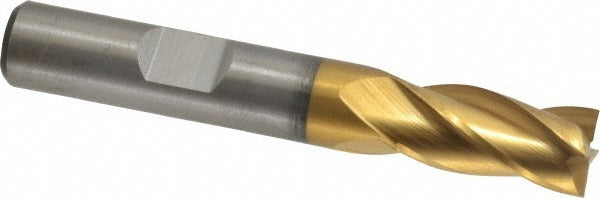

Cleveland C41524 Square End Mill 3/8 in 4 Flute Hss Tin

Product Description

The CLEVELAND C41524 is a 4-flute, high speed steel square end mill designed for precision milling in metalworking applications. It features a 3/8 inch cutting diameter, a 3/4 inch length of cut, and a 2-1/2 inch overall length with a straight cylindrical shank that also accepts a Weldon flat drive. A TiN (titanium nitride) coating increases surface hardness and extends tool life in demanding cutting conditions. The 30-degree helix angle and right-hand spiral flute geometry promote efficient chip evacuation. This tool is centercutting, allowing it to plunge directly into the workpiece. It belongs to the HG-4C series and is sized in the regular length category.

This end mill is suited for milling operations on cast iron, non-ferrous metals, and steel. Typical applications include slotting, profiling, and peripheral milling on manual mills and CNC machining centers. The 4-flute configuration provides a good balance of chip clearance and rigidity for general-purpose material removal in both light and moderate cutting conditions across job shops and production environments.

Key Features

• 3/8 inch cutting diameter with 3/4 inch length of cut for standard-depth slot and profile work
• 4-flute, right-hand spiral geometry for balanced chip load and surface finish
• High speed steel construction with TiN finish for improved wear resistance and tool life
• Centercutting design allows direct plunge entry without pre-drilling
• 30-degree helix angle promotes smooth cutting action and effective chip evacuation
• Straight cylindrical shank with Weldon flat compatibility for secure tool holding

Compatibility

Designed as an OEM-style replacement or direct-fit end mill for standard 3/8 inch collets, ER collet chucks, and Weldon-style end mill holders used on vertical mills and CNC machining centers. Primary workpiece materials include cast iron, non-ferrous metals, and steel.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before installing or removing the tool. Seat the shank fully into the holder and tighten to the tool holder manufacturer's specified clamping procedure. Inspect cutting edges for chips or wear before each use and replace the tool if edge integrity is compromised.
