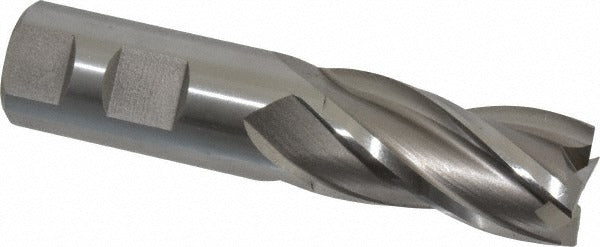

Cleveland C41272 Square End Mill 1in 4-flute Hss

Product Description

The CLEVELAND C41272 is a 4-flute, single-end square end mill designed for material removal and contour milling in metalworking applications. Manufactured from high speed steel (HSS), it features a 1-inch cutting diameter, a 2-inch length of cut, and a 4-1/2-inch overall length. The spiral flute geometry and 30-degree helix angle promote efficient chip evacuation and smooth cutting action. The straight-cylindrical shank with Weldon flat accommodates standard end mill holders and side-lock toolholders. This tool ships uncoated and is center-cutting, allowing plunge entry as well as peripheral and slot milling operations.

This end mill is suited for machining cast iron, non-ferrous metals, and steel in job shop, toolroom, and production environments. The right-hand cut and right-hand flute configuration is the standard setup for conventional CNC machining centers and manual knee mills. The HG-4C series targets general-purpose applications where HSS tooling is preferred over carbide, particularly in interrupted cuts or when machine rigidity is a concern.

Key Features

• 4-flute spiral configuration with 30-degree helix angle for balanced cutting and chip flow
• Center-cutting design allows direct plunge entry without a pre-drilled pilot hole
• High speed steel construction handles interrupted cuts and lower-rigidity setups
• Straight-cylindrical shank with Weldon flat for positive engagement in side-lock holders
• Right-hand cut, right-hand flute — standard orientation for CNC and manual milling machines
• Uncoated finish — suitable for re-sharpening and compatible with cutting fluid application

Compatibility

Designed for use in standard 1-inch end mill holders, collet chucks, and Weldon-flat side-lock holders on CNC machining centers and manual milling machines. Primary workpiece materials include cast iron, non-ferrous metals, and steel.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Verify holder bore and shank diameter match before seating the tool, and torque set screws to the holder manufacturer specification. Confirm runout with a dial indicator after tool installation and before cutting.
