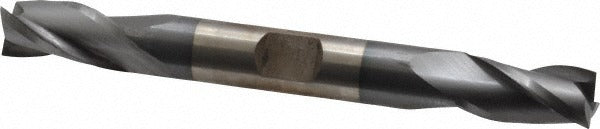

Cleveland C39625 Square End Mill 3/8 in 3 Flute Hss Ticn

Product Description

The CLEVELAND C39625 is a double-end, three-flute square end mill designed for precision milling in metal removal applications across HVAC fabrication, mechanical contracting, and light manufacturing shops. Machined from high speed steel with a titanium carbonitride (TiCN) coating, this tool delivers improved wear resistance and surface hardness compared to uncoated HSS tooling. The mill measures 0.375 inches in diameter with a 0.75-inch length of cut and a 3.5-inch overall length. The 30-degree spiral flute geometry promotes efficient chip evacuation and smooth cutting action. Right-hand cut and right-hand flute configuration match standard milling machine spindle rotation.

This end mill is suited for milling cast iron, non-ferrous metals, and steel in both production and maintenance machining environments. The double-end design extends tool life by offering two usable cutting ends per tool. The straight cylindrical shank with Weldon flat accommodates standard end mill holders and set-screw collet chucks found on vertical mills, knee mills, and CNC machining centers. The HD-3 series targets general-purpose regular-length applications where rigidity and center-cutting capability are required for slot milling, peripheral milling, and plunge entry.

Key Features

• TiCN coating increases surface hardness and reduces tool wear on ferrous and non-ferrous workpieces
• Double-end design provides two cutting ends, extending usable tool life
• Center-cutting geometry allows direct plunge entry without a pre-drilled pilot hole
• 30-degree helix angle promotes chip flow and reduces cutting forces
• Weldon flat on shank prevents tool pullout under heavy side loads
• Right-hand cut and right-hand flute configuration for standard milling setups

Compatibility

Compatible with workpiece materials including cast iron, non-ferrous metals, and steel. Fits standard 3/8-inch end mill holders and Weldon-style collet chucks on vertical and CNC milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tool room technician. Power down and lock out the machine spindle before loading or changing tooling. Seat the shank fully into the holder and tighten the set screw against the Weldon flat to the holder manufacturer specification before operating. Inspect the cutting edges for chips or damage before each use.
