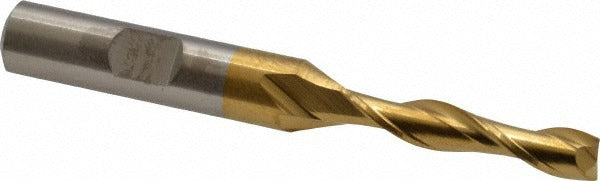

Cleveland C39080 Square End Mill 2 Flute Hss Tin HG-2

Product Description

The CLEVELAND C39080 is a high speed steel square end mill designed for material removal in ferrous and non-ferrous machining applications. Built to Series HG-2 long-length specifications, it features a 0.25 inch mill diameter, a 1.25 inch length of cut, and a 3.0625 inch overall length. The TiN (titanium nitride) finish improves surface hardness and wear resistance, extending tool life in production environments. The two-flute, spiral geometry with a 30-degree helix angle promotes chip evacuation and reduces heat buildup. This is a centercutting tool, enabling plunge cuts as well as conventional peripheral milling.

The C39080 is suited for machining cast iron, non-ferrous metals, and steel in both manual and CNC milling setups. The long length of cut makes it practical for deeper cavity work and extended-reach operations where a standard-length end mill cannot reach. The 0.375 inch straight-cylindrical shank with Weldon flat accepts standard side-lock toolholders, making it compatible with common milling machine and machining center setups encountered in job shop and production environments.

Key Features

• High speed steel construction for toughness in interrupted cuts and general-purpose milling
• TiN finish increases surface hardness and reduces friction at the cutting edge
• Two-flute spiral design with 30-degree helix angle for efficient chip evacuation
• Centercutting geometry allows direct plunge entry without a pilot hole
• Right-hand cut, right-hand flute orientation for standard spindle use
• Long series (HG-2) with 1.25 inch length of cut for deeper reach applications

Compatibility

Designed as an OEM-style tooling option for standard milling machine spindles and CNC machining centers accepting a 0.375 inch straight shank with Weldon flat. Primary workpiece materials include cast iron, non-ferrous metals, and steel as specified by the manufacturer.

Installation Notes

Installation is performed by a machinist or tooling technician. Power down and lock out the spindle before changing tooling. Seat the Weldon flat against the set screw in the side-lock holder and torque the holder per the toolholder manufacturer's specification. Confirm runout with a dial indicator before beginning cuts, as excessive runout accelerates edge wear and reduces surface finish quality.
