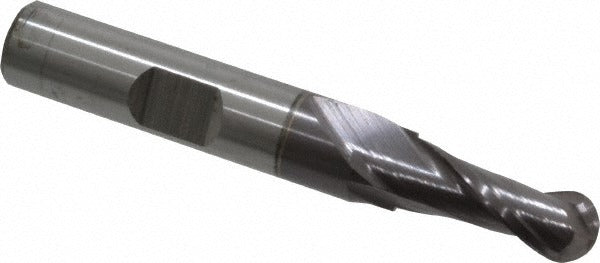

Cleveland C39030 Ball End Mill 0.3125 in 2 Flute Hss Ticn

Product Description

The CLEVELAND C39030 is a single-end ball end mill designed for finishing operations in ferrous and cast iron workpiece materials. Built from high speed steel (HSS) with a titanium carbonitride (TiCN) coating, it delivers improved wear resistance and surface hardness compared to uncoated HSS tooling. The 0.3125-inch (5/16-inch) diameter cutter features a 2-flute spiral geometry with a 30-degree helix angle, a 0.75-inch length of cut, and a 3/8-inch shank diameter. Overall length is 2.5 inches. Part of the HG-2B series, this end mill is suited to machining shops, tool rooms, and production environments where right-hand cutting is standard.

The C39030 is intended for finishing passes on cast iron and steel components. The ball nose profile generates contoured and radiused surfaces in milling applications. The right-hand cut and right-hand flute direction make it compatible with conventional vertical and horizontal milling machines, CNC machining centers, and manual knee mills. The regular-length form factor fits standard toolholders accepting a 3/8-inch shank. No coolant-through capability is present, so flood or mist coolant is applied externally during cutting.

Key Features

• TiCN coating increases surface hardness and extends tool life on steel and cast iron
• 30-degree helix angle promotes smooth chip evacuation during finishing cuts
• 2-flute spiral design provides clearance for chip flow in finishing applications
• Single-end ball nose profile for radiused and contoured surface milling
• Right-hand cut and right-hand flute direction for standard spindle operation
• HG-2B series construction for consistent dimensional accuracy

Compatibility

Designed as a direct-fit replacement or standard tooling selection for milling machines and CNC machining centers accepting a 3/8-inch shank end mill. Primary workpiece materials are cast iron and steel.

Installation Notes

Installation is performed by qualified machinists or CNC setup personnel. Ensure the machine spindle is fully stopped and powered down before inserting or removing the end mill from the toolholder. Use a collet or end mill holder rated for a 3/8-inch shank and tighten to the toolholder manufacturer's specified procedure. Verify runout with a dial indicator before beginning cuts to protect both the tool and the workpiece surface finish.
