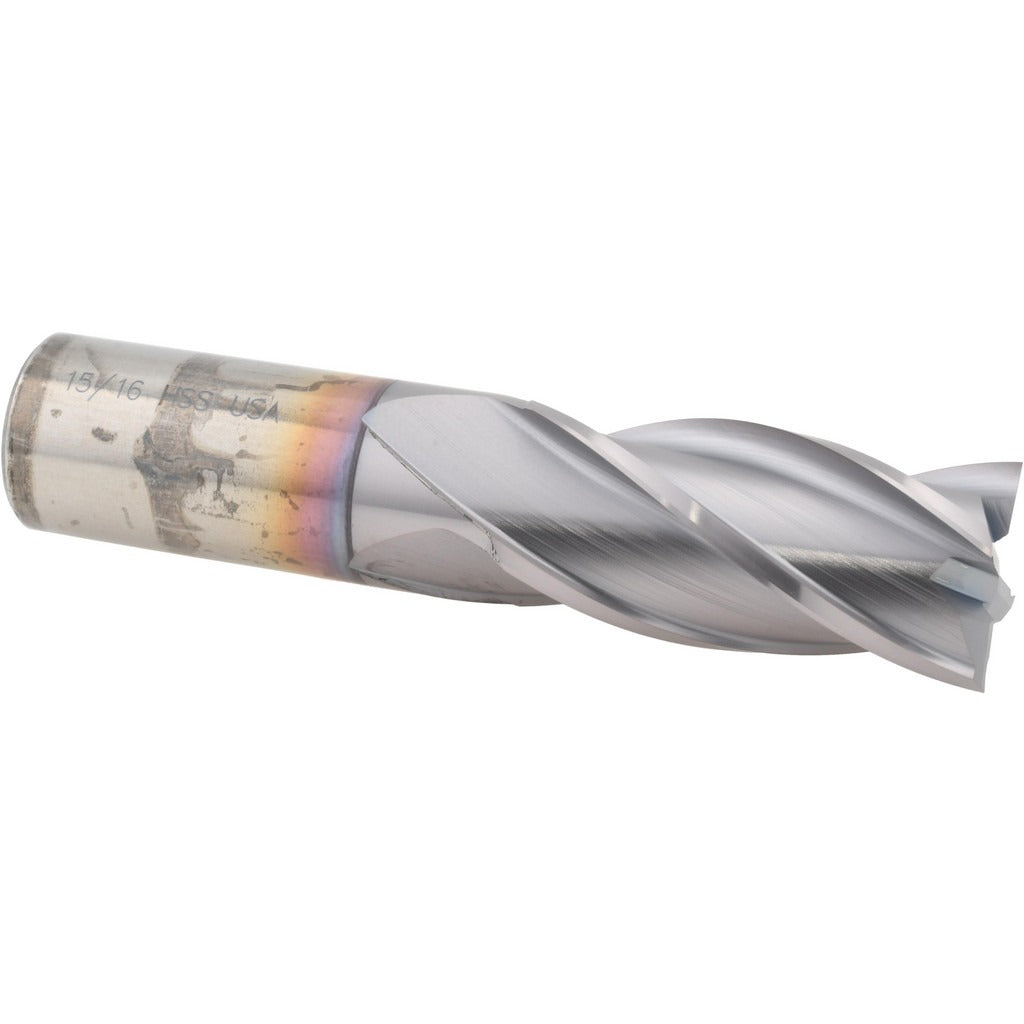

Cleveland C33285 Square End Mill 15/16 in 4 Flute Hss Ticn

Product Description

The CLEVELAND C33285 is a single-end square end mill designed for material removal in milling operations across machining centers and manual mills. Built from high speed steel (HSS) with a titanium carbonitride (TiCN) coating, it measures 15/16 inches (0.9375 inches) in diameter with a 1-7/8 inch length of cut and a 4-1/8 inch overall length. The 7/8 inch Weldon flat shank provides positive rotational engagement in the holder. Four right-hand spiral flutes at a 30-degree helix angle promote efficient chip evacuation, and the centercutting geometry allows plunge milling entry. This tool is installed and operated by machinists and CNC programmers in job shop and production environments.

The C33285 is rated for use in cast iron, aluminum and non-ferrous materials, and steel. The HG-4C-TC series designation places it in a general-purpose high-performance HSS line suited to a broad range of roughing and finishing passes in those material families. Its regular-length classification makes it appropriate for standard-depth pocketing, slotting, and profiling work where extended reach is not required. No coolant-through passages are present, so flood or mist coolant must be applied externally at the cut zone.

Key Features

• TiCN coating increases surface hardness and lubricity compared to uncoated HSS, extending tool life in abrasive and ferrous materials
• 30-degree right-hand spiral flutes promote positive chip flow away from the cut zone
• Centercutting geometry enables direct plunge entry without a pre-drilled pilot hole
• Weldon flat shank provides a secure, anti-pullout interface with set-screw tool holders
• Single-end design with 15/16 inch cutting diameter and 1-7/8 inch length of cut covers standard pocket and slot depths
• No chipbreaker and no variable helix — consistent geometry simplifies feeds-and-speeds programming

Compatibility

Designed for use in 7/8 inch Weldon flat tool holders. Rated for cast iron, aluminum and non-ferrous materials, and steel workpieces per the HG-4C-TC series specification.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the machine spindle is fully stopped and the control is in E-stop or lockout before changing tooling. Seat the Weldon flat fully against the set screw in the holder and torque the set screw per the holder manufacturer specification. Verify runout with a dial indicator before commencing cutting operations, as excessive runout accelerates edge wear and reduces surface finish quality.
