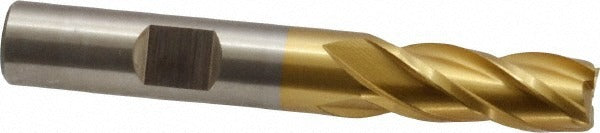

Cleveland C33198 Square End Mill 11/32 in 4 Flute Hss Tin

Product Description

The CLEVELAND C33198 is a 4-flute square end mill designed for precision milling in metal and cast iron applications. Ground from high speed steel (HSS) with a titanium nitride (TiN) coating, this tool offers improved surface hardness and wear resistance over uncoated HSS. It features a 0.3438-inch (11/32-inch) cutting diameter, a 3/4-inch length of cut, and a 3/8-inch straight cylindrical shank with a Weldon flat for secure tool holding. The 30-degree spiral flute geometry promotes efficient chip evacuation. This end mill is centercutting, allowing plunge entry. It is part of the HG-4C series and is suited for machinists, tool-and-die shops, and general production machining environments.

The C33198 is appropriate for milling cast iron, non-ferrous metals, and steel in both manual and CNC milling operations. Its regular-length profile and 2-1/2-inch overall length make it well suited for close-tolerance slots, pockets, and profiling cuts where a shorter, stiffer tool is preferred. The right-hand cut and right-hand flute configuration is standard for conventional vertical and horizontal milling setups. This tool handles workpiece materials classified under ISO material groups K, N, and P.

Key Features

• TiN coating increases surface hardness and extends tool life compared to uncoated HSS
• Centercutting design permits direct plunge milling without a pre-drilled entry hole
• 30-degree helix angle promotes smooth chip flow and reduces cutting forces
• Weldon flat on straight cylindrical shank reduces tool pullout risk under load
• 4-flute configuration delivers a finer surface finish and higher feed rates than 2-flute designs
• Right-hand cut, right-hand flute geometry compatible with standard milling spindle rotation

Compatibility

Designed for use in standard milling chucks, collet holders, and Weldon-flat set-screw holders accepting a 3/8-inch shank diameter. Suitable for milling cast iron, non-ferrous metals, and steel workpiece materials (ISO material groups K, N, and P).

Installation Notes

Installation is performed by a machinist or tool crib technician. Ensure the milling machine spindle is fully stopped and the tool holder is clean and free of chips before mounting. Torque the set screw against the Weldon flat per the tool holder specification. Confirm runout with a dial indicator before making finish cuts, as excessive runout will accelerate wear on HSS tooling.
