Cleveland C33116 Square End Mill 3/8 in 4 Flute Hss Ticn

Product Description

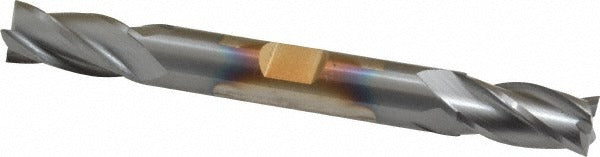

The CLEVELAND C33116 is a double-end square end mill designed for metal-cutting operations in machining centers and manual mills. Built from high speed steel with a titanium carbonitride (TiCN) finish, it delivers extended tool life in abrasive cutting conditions. The mill measures 0.375 inches in diameter with a 0.750-inch length of cut, a 0.375-inch straight-cylindrical shank compatible with Weldon flat holders, and a 3.5-inch overall length. Four spiral flutes with a 30-degree helix angle provide efficient chip evacuation and smooth cutting action. The double-end design extends usable tool life between regrinds. This tool is installed by machinists and CNC operators in production and job-shop environments.

The C33116 is suited for milling cast iron, non-ferrous metals, and steel in a regular-length configuration. Its centercutting geometry allows for plunge operations as well as conventional profiling and slotting. The right-hand cut and right-hand flute orientation match standard spindle rotation on vertical and horizontal machining centers. The HD-4C series targets high-demand production applications where consistent dimensional accuracy and finish quality are required.

Key Features

• TiCN coating improves wear resistance and reduces heat buildup during cutting
• Four spiral flutes with 30-degree helix angle for efficient chip removal
• Centercutting design allows direct plunge entry into workpiece material
• Double-end construction extends tool service intervals
• Straight-cylindrical shank with Weldon flat for positive drive retention
• Right-hand cut and right-hand flute for standard spindle compatibility

Compatibility

Designed for use in toolholders accepting a 0.375-inch straight shank with Weldon flat. Rated for milling cast iron, non-ferrous metals, and steel. Part of the Cleveland HD-4C series for production milling applications.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered down and locked out before tool changes. Seat the shank fully in the holder and tighten set screws against the Weldon flat to the holder manufacturer's specification. Verify runout with a dial indicator before engaging the workpiece. Inspect both ends for edge condition before each use.
