Cleveland C33067 Square End Mill 0.25 in 4 Flute Hss Tin

Product Description

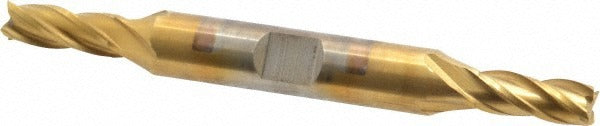

The CLEVELAND C33067 is a double-end, 4-flute square end mill designed for material removal and profiling in ferrous and non-ferrous machining applications. Manufactured from high speed steel (HSS) with a titanium nitride (TiN) coating, it delivers improved wear resistance and extended tool life compared to uncoated HSS. The cutting diameter is 0.25 inches with a 0.625-inch length of cut and a 0.375-inch straight-cylindrical shank that also accepts a Weldon flat. Overall length is 3.375 inches. The 30-degree helix spiral flute geometry promotes efficient chip evacuation, and the centercutting configuration allows plunge entry directly into the workpiece.

This end mill is suited for milling operations on cast iron, non-ferrous metals, and steel in job shop, toolroom, and production environments. The double-end design provides two cutting ends on a single tool, reducing per-edge cost on repeat work. Right-hand cut and right-hand flute orientation are standard for conventional CNC and manual milling setups. The HD-4C series is a regular-length line intended for general-purpose slotting, profiling, and peripheral milling where extended reach is not required.

Key Features

• 0.25-inch cutting diameter with 0.625-inch length of cut for controlled depth engagement
• TiN coating over HSS substrate improves surface hardness and reduces friction at the cutting edge
• Double-end design yields two usable cutting ends per tool
• Centercutting geometry permits direct plunge milling without a pre-drilled hole
• 30-degree helix spiral flutes support chip flow and reduce heat buildup
• Straight-cylindrical shank with Weldon flat option for secure collet or set-screw holder retention

Compatibility

Designed for use with standard 0.375-inch ID collet chucks, ER collets, and Weldon-style end mill holders on CNC machining centers and manual knee mills. Rated for cutting cast iron, non-ferrous metals, and steel workpiece materials per the HD-4C series specification.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the holder before tightening; if using a Weldon flat holder, align the set screw to the flat to prevent axial pullout under load. Verify runout with a dial indicator after installation and before initiating a cut.
