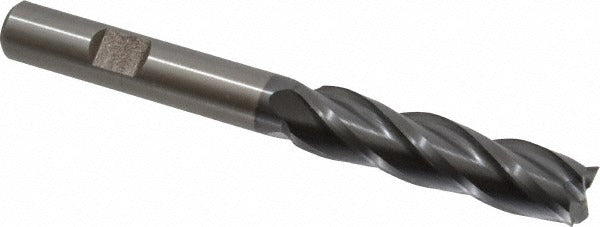

Cleveland C32679 Square End Mill 7/16 in 4 Flute Cobalt

Product Description

The CLEVELAND C32679 is a cobalt square end mill designed for high-performance metal removal in demanding machining applications. Built from M42 cobalt high-speed steel and finished with a TiCN (titanium carbonitride) coating, this end mill delivers increased wear resistance and extended tool life compared to standard HSS tooling. It features a 7/16 inch cutting diameter, a 1-3/4 inch length of cut, and a 3/8 inch straight cylindrical shank with a Weldon flat for secure tool holding. The 30-degree spiral flute geometry and 4-flute configuration promote efficient chip evacuation and a smooth cutting action. Licensed machinists and tool-and-die professionals are the primary users.

This end mill is engineered for cutting high-temperature alloys, stainless steel, and general carbon and alloy steels. Its long-series geometry, with a 3-3/4 inch overall length, allows access to deeper features and pockets where standard-length tools cannot reach. The centercutting design enables direct plunge entry into workpieces, making it suitable for slotting, profiling, and ramping operations on CNC machining centers and manual knee mills alike. Right-hand cut and right-hand flute orientation are standard for conventional and climb milling setups.

Key Features

• M42 cobalt HSS construction for elevated heat and wear resistance in ferrous and exotic alloys
• TiCN coating reduces friction and increases surface hardness for longer tool life
• 4 flutes with a 30-degree helix angle balance chip load and finish quality
• Centercutting geometry allows direct plunge and ramp entry without pre-drilling
• Long-series length of cut (1-3/4 inches) provides reach into deep pockets and features
• 3/8 inch shank with Weldon flat compatible with standard set-screw tool holders

Compatibility

Designed for use in standard 3/8 inch straight-shank or Weldon flat tool holders. Primary workpiece materials include high-temperature alloys, stainless steel, and carbon and alloy steels. Part of the Cleveland Series HGC-4C long cobalt end mill family.

Installation Notes

Installation should be performed by a qualified machinist following standard tool-holding procedures. Ensure the machine spindle is fully stopped and the tool holder is clean and undamaged before mounting. Torque set screws against the Weldon flat to the tool holder manufacturer's specification. Verify runout with a dial indicator before beginning a production cut to maximize tool life and surface finish quality.
