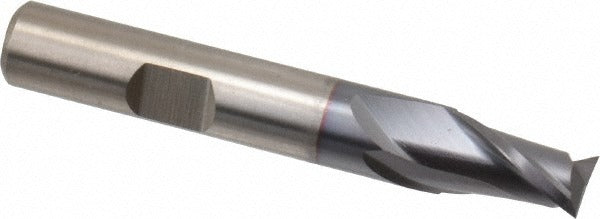

Cleveland C32542 Square End Mill 3/8 in 2 Flute Cobalt Ticn

Product Description

The CLEVELAND C32542 is a 2-flute cobalt square end mill designed for high-performance metal removal in demanding machining applications. Built from M42 cobalt high-speed steel and finished with a TiCN (Titanium Carbonitride) coating, it delivers extended tool life and improved heat resistance compared to standard HSS tooling. The 3/8 inch cutting diameter, 9/16 inch length of cut, and 30-degree helix angle combine to produce efficient chip evacuation and a stable cut. Centercutting geometry allows the tool to plunge directly into a workpiece. This end mill is sized for use in manual mills, CNC machining centers, and knee mills found in job shops and production environments.

The C32542 is suited for milling high temperature alloys, stainless steel, and carbon and alloy steels. Its spiral flute design and right-hand cut with right-hand flute configuration make it a standard choice for peripheral and slot milling in those material groups. The straight cylindrical shank with Weldon flat accommodates standard end mill holders and side-lock toolholders commonly found in both manual and CNC setups. This is a single-end tool in the HGC-2 series, cataloged as a regular-length geometry.

Key Features

• M42 cobalt steel construction for improved red hardness and wear resistance over standard M2 HSS
• TiCN coating increases surface hardness and reduces friction at the cutting edge
• 30-degree helix angle promotes smooth chip flow and reduces cutting force
• Centercutting design supports direct plunge entry and slot milling operations
• Right-hand cut, right-hand flute spiral geometry for conventional and climb milling
• Weldon flat on shank provides positive drive and prevents slippage in side-lock holders

Compatibility

Designed for use in standard 3/8 inch end mill holders and Weldon-style side-lock toolholders. Primary workpiece materials include high temperature alloys, stainless steel, and carbon and alloy steels (ISO material codes M, P, and S).

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before loading or changing tooling. Confirm the holder bore and collet are clean and free of debris before seating the shank. Torque the set screw against the Weldon flat per the toolholder manufacturer specification to prevent pullout during cutting.
