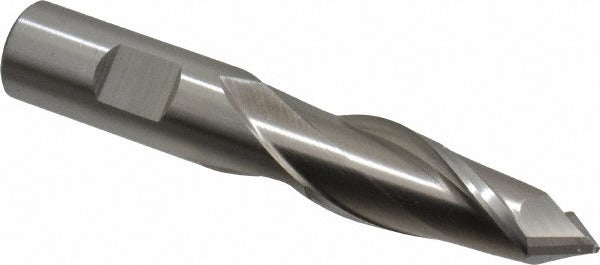

Cleveland C32436 Drill Mill 5/8 in 2 Flute 90 Point Hss

Product Description

The CLEVELAND C32436 is a high speed steel drill mill designed for combination drilling and milling operations in a single tool. With a 0.625 inch (5/8 inch) cutting diameter, 1-5/16 inch length of cut, and a 90-degree point angle, this tool is built for shops and machinists who need accurate center drilling, spotting, and end milling from one setup. The uncoated HSS construction offers reliable performance across a range of ferrous and non-ferrous materials. The 30-degree helix angle promotes efficient chip evacuation during milling passes.

This drill mill is suited for manual machining centers, knee mills, and CNC milling applications where a compact, rigid tool is required. The right-hand cutting and right-hand flute direction make it compatible with standard spindle rotation. With a 5/8 inch shank diameter and 3-7/16 inch overall length, it fits standard collet chucks and end mill holders common in general machine shop environments. Machinists in tool rooms, job shops, and production facilities will find this a practical general-purpose option.

Key Features

• 0.625 inch cutting diameter for precise drilling and milling in a single pass
• 90-degree point angle for accurate spotting and center drilling
• 30-degree helix angle promotes chip flow and reduces cutting heat
• High speed steel construction provides toughness and regrindability
• Uncoated finish suitable for use with cutting fluids across a range of materials
• Right-hand cut and right-hand flute direction for standard milling spindles

Compatibility

Designed as a general-purpose drill mill for use in standard 5/8 inch collet chucks and end mill holders on manual and CNC vertical milling machines.

Installation Notes

Installation should be performed by a qualified machinist. Secure the 5/8 inch shank in a properly sized collet chuck or end mill holder, ensuring adequate clamping depth before operation. Always power down and lock out the machine spindle before changing or inspecting the tool. Verify runout after installation to maintain dimensional accuracy and tool life.
