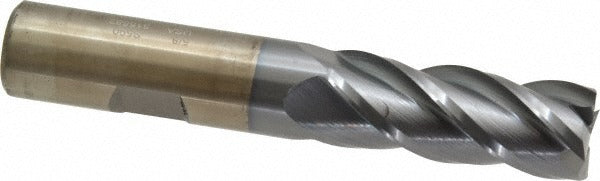

Cleveland C32001 Square End Mill 5/8 in 4 Flute PM-4

Product Description

The CLEVELAND C32001 is a square end mill engineered for demanding metal removal applications across a wide range of workpiece materials. Built from M42 powdered metal with a TiCN finish, this 4-flute, single-end tool delivers increased wear resistance and heat tolerance compared to standard high-speed steel. The cutter measures 0.625 inches in diameter with a 1.625-inch length of cut and a 3.75-inch overall length. The 37-degree spiral helix and right-hand cut geometry promote efficient chip evacuation and smooth surface finishes. Centercutting capability allows direct plunge entry into workpieces without pre-drilling.

The C32001 is suited for milling steel, stainless steel, cast iron, nonferrous alloys, and high-temperature alloys. Its PM-4 series designation places it in Cleveland's powdered metal lineup, which is targeted at shops and field machinists running production or toolroom work on CNC mills and manual knee mills. The straight cylindrical shank with Weldon flat accommodates standard end mill holders and set-screw style toolholders.

Key Features

• M42 powdered metal construction for elevated hot hardness and abrasion resistance
• TiCN coating extends tool life on ferrous and high-temp alloy cuts
• 4-flute design provides higher feed rates and improved finish on steels
• 37-degree helix promotes efficient chip flow and reduced cutting forces
• Centercutting geometry allows direct plunge milling
• Weldon flat on straight cylindrical shank resists axial pullout in heavy cuts

Compatibility

Designed for use in standard 5/8-inch end mill holders, collet chucks, and Weldon-style set-screw holders on CNC and manual milling machines. Compatible workpiece material codes H, K, M, P, and S, covering tool steels, cast irons, mild steels, stainless steels, and high-temperature alloys.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Secure the Weldon flat against the toolholder set screw before tightening to prevent axial pullout during cutting. Verify runout with a dial indicator after clamping, as excessive runout accelerates edge wear. Ensure the machine spindle is fully stopped and the control is in an e-stop or locked-out state before changing tooling.
