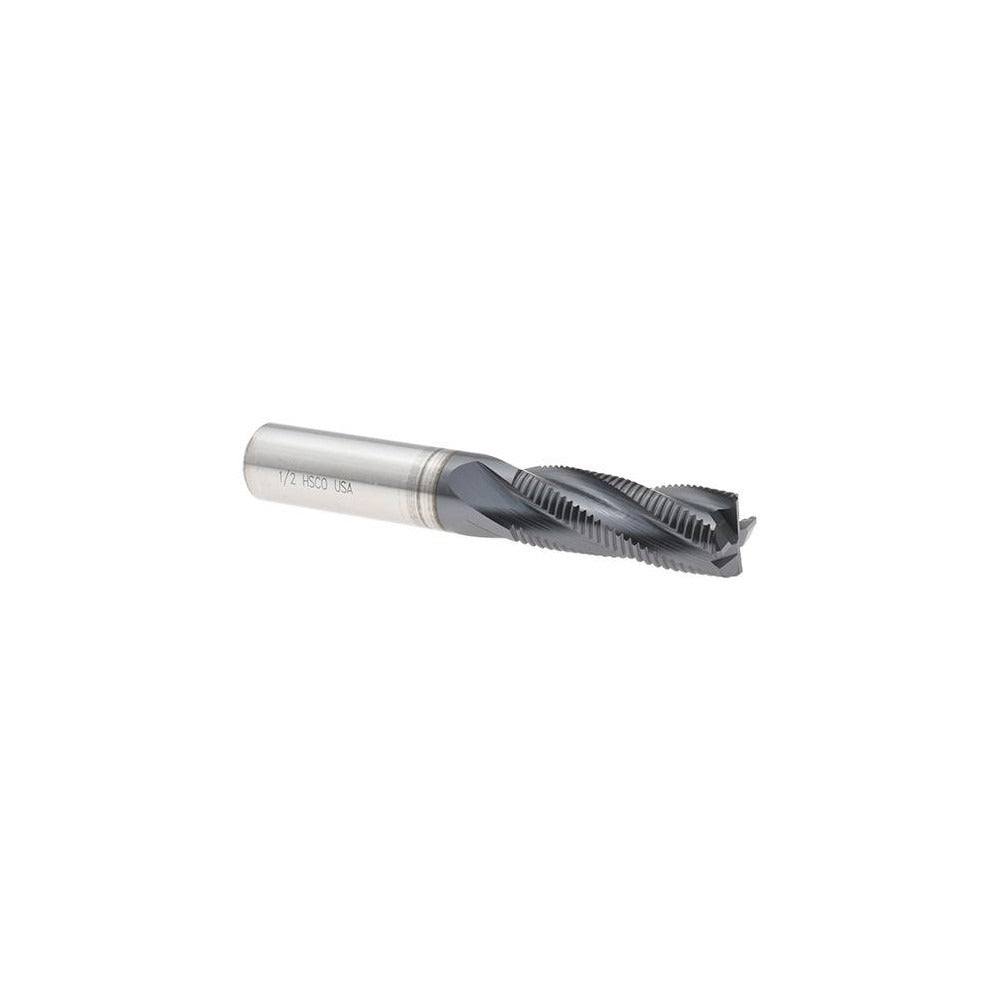

Cleveland C31055 Roughing End Mill 1/2 Inch 4 Flute Cobalt

Product Description

The CLEVELAND C31055 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from M42 cobalt high-speed steel and finished with a TiAlN coating, it handles tough ferrous materials and elevated cutting temperatures with consistent performance. The 1/2 inch diameter, 4-flute, fine-pitch geometry generates a corrugated chip pattern that breaks chips into small segments, reducing cutting forces and heat buildup. With a 1.25 inch length of cut and 3.25 inch overall length, this tool is suited for standard reach roughing passes in a vertical or horizontal milling setup. Licensed machinists and toolroom technicians are the primary users.

This end mill is used in job shop and production environments for roughing passes on steel, stainless steel, and other ferrous alloys. The right-hand cutting and right-hand flute direction make it compatible with conventional CNC machining centers and manual knee mills. The center-cutting capability allows plunge entry without a pre-drilled start hole. The fine pitch and TiAlN coating extend tool life when running higher surface footage or cutting difficult materials without flood coolant.

Key Features

• M42 cobalt HSS construction for heat and wear resistance in ferrous materials
• TiAlN coating extends tool life at elevated cutting temperatures
• 4-flute fine-pitch roughing geometry reduces cutting forces and chip load per flute
• Center-cutting design allows direct plunge entry
• Right-hand cut and right-hand helix for use on standard milling spindles
• Single-end configuration with 1/2 inch shank for direct collet or end mill holder mounting

Compatibility

Designed as an OEM-style roughing end mill for use in 1/2 inch collets, end mill holders, or Weldon-style holders on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is powered off before changing tooling. Seat the shank fully in the holder to the recommended gauge line and torque the set screw or collet nut to the holder specification. Inspect runout with a dial indicator before beginning a cut, as excessive runout accelerates tool wear and reduces surface finish quality.
