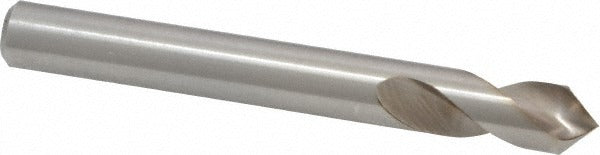

Cleveland C24168 Spotting Drill 3/8 in 90 Degree Hss

Product Description

The CLEVELAND C24168 is a single-ended spotting drill designed to create accurate center points and chamfers before through-hole drilling operations. Built from high-speed steel (HSS) with a bright, uncoated finish, this tool features a 90-degree point angle and a 0.375-inch cutting diameter. It runs a 1.125-inch spiral flute length and measures 3.125 inches in overall length. The straight-cylindrical shank measures 0.375 inches in diameter, making it compatible with standard drill chucks. Machinists and tool-and-die professionals use this drill on manual and CNC equipment for general-purpose spotting and center-drilling tasks.

This spotting drill is suited for general-purpose shop use in both production and maintenance machining environments. The 90-degree point angle is a common standard for initiating hole locations, preventing drill walk, and producing countersink-style lead-ins. The right-hand cut orientation matches standard drill press and CNC spindle rotation. It is appropriate for use in light to medium machining operations on ferrous and non-ferrous workpiece materials. Sold individually as a single-piece package.

Key Features

• 90-degree drill point angle for accurate hole spotting and countersink initiation
• 0.375-inch cutting diameter with matching 0.375-inch straight-cylindrical shank
• High-speed steel construction for general-purpose cutting performance
• Bright, uncoated finish suitable for use with standard cutting fluids
• 1.125-inch spiral flute length with 2-flute configuration for chip evacuation
• Right-hand cut for use with standard spindle rotation

Compatibility

Designed as a general-purpose spotting drill compatible with standard 3/8-inch drill chucks and collet holders on drill presses, manual mills, and CNC machining centers. Part of the Cleveland Series 2635 spotting drill line.

Installation Notes

Installation and use should be performed by qualified machinists following standard shop safety procedures. Secure the straight shank fully in the chuck or collet and verify runout before operation. Apply appropriate cutting fluid for the workpiece material to extend tool life. Never exceed the recommended spindle speed for the tool diameter and material combination being machined.
