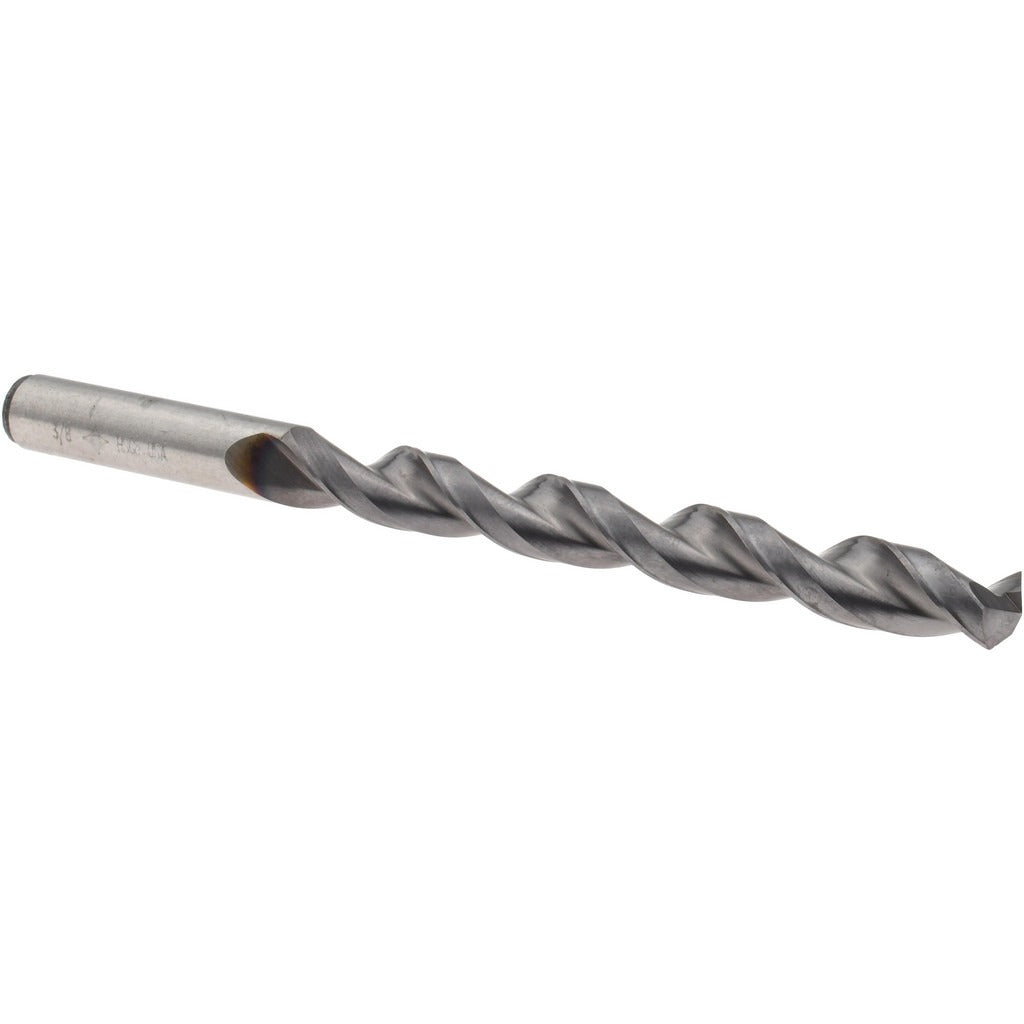

Cleveland C16969 Cobalt Jobber Drill Bit 3/8 Inch

Product Description

The CLEVELAND C16969 is a cobalt jobber-length drill bit designed for cutting hard and abrasive materials in demanding shop and field environments. Built from M42 cobalt high-speed steel and coated with TiCN (titanium carbonitride), this bit runs at higher surface speeds and lasts longer between regrinds than standard HSS tooling. The split-point, web-thinned 135-degree point geometry reduces thrust on entry and self-centers without a pilot hole. The parabolic flute profile clears chips efficiently during deep-hole drilling. Overall length is 5 inches with a flute length of 3.625 inches. Diameter is 0.375 inches with a tolerance of -0.0010 to 0.0000 inches. This bit ships individually and is sold in minimum quantities of 5.

The C16969 is suited for drilling stainless steel, cast iron, and other ferrous alloys that wear down standard HSS bits prematurely. Typical applications include fabrication shops, maintenance and repair operations, HVAC and mechanical contractors drilling sheet metal and structural steel, and plumbers or pipefitters working with stainless fittings or cast iron pipe flanges. The straight cylindrical shank fits standard 3-jaw drill chucks on both handheld drills and drill presses. Right-hand cutting direction is standard for all conventional drilling operations. The heavy-duty grade rating makes this appropriate for production drilling where cycle times and tool life matter.

Key Features

• M42 cobalt high-speed steel construction for extended tool life in hard materials
• TiCN coating reduces friction and heat buildup at the cutting edge
• 135-degree split point with web thinning for self-centering entry and reduced thrust
• Parabolic flute geometry improves chip evacuation in deep-hole drilling
• Straight cylindrical shank fits standard drill chucks without adapters
• Right-hand cutting direction compatible with all conventional drilling setups

Compatibility

Designed for use in stainless steel and cast iron workpiece materials. Fits any standard 3-jaw drill chuck accepting a 0.375-inch straight shank. Conforms to ANSI specification standards for jobber-length drill bits.

Installation Notes

This drill bit is installed and used by machinists, fabricators, and trade professionals in drill presses, magnetic drills, or handheld drill drivers. Secure the shank fully in the chuck and verify runout before drilling. Use appropriate cutting fluid or coolant when drilling stainless steel to manage heat and extend cutting edge life. Inspect the cutting edge for wear regularly, as cobalt bits can be resharpened with a suitable drill grinding fixture.
