Cleveland C16699 Cobalt Jobber Drill Bit 3 Mm Tin

Product Description

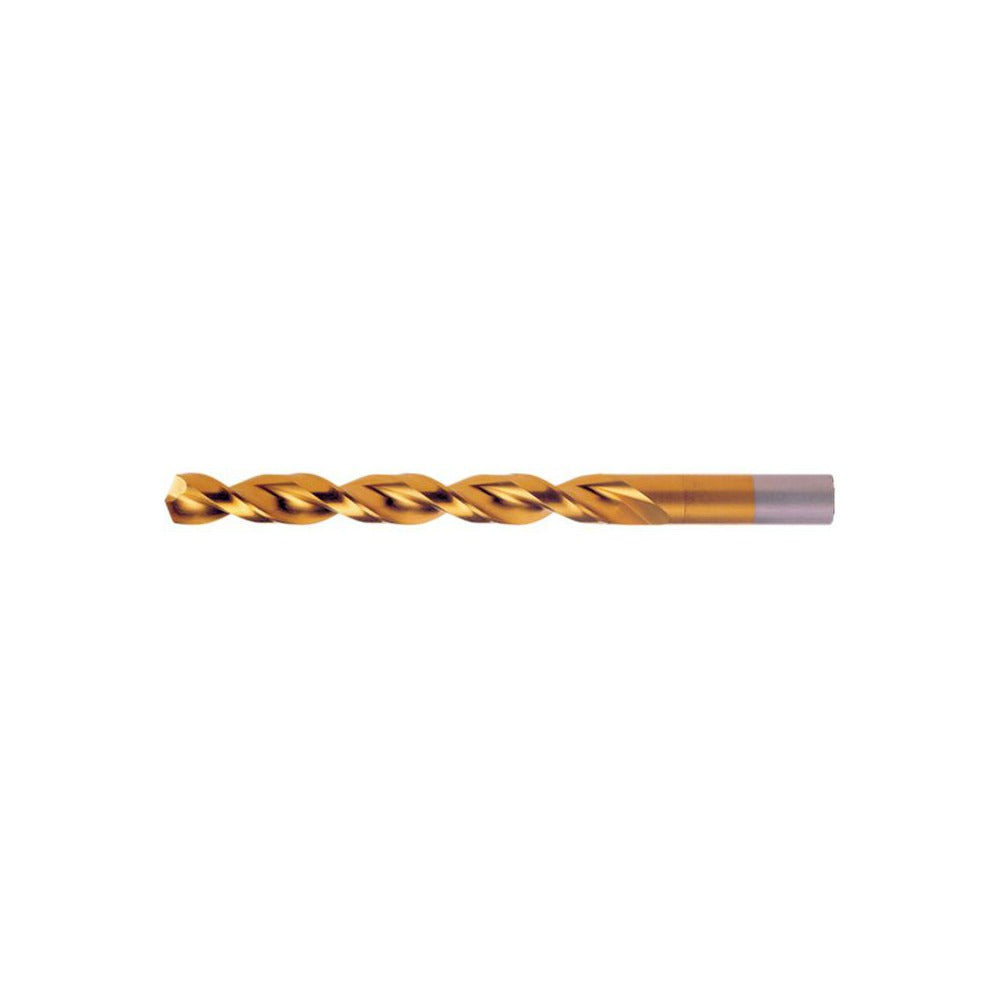

The CLEVELAND C16699 is a cobalt jobber length drill bit designed for demanding metal drilling applications. Built from M42 cobalt high-speed steel with a titanium nitride (TiN) coating, it delivers extended cutting life and heat resistance in hard or abrasive materials. The 135-degree split point starts on contact without a center punch, reducing walking and improving hole accuracy. At 2.402 inches overall length with a 1.299-inch flute, this bit fits standard drill chucks and magnetic drill presses used in fabrication, maintenance, and industrial service work. A licensed machinist or skilled tradesperson is the primary installer.

This bit is suited for drilling ferrous metals, stainless steel, cast iron, and hardened alloys where standard high-speed steel bits fail prematurely. The parabolic flute geometry promotes fast chip evacuation, reducing heat buildup during deep drilling passes. It is appropriate for use in handheld drills, drill presses, and CNC equipment in residential maintenance shops, commercial fabrication facilities, and industrial production environments. The straight-cylindrical shank accepts standard 3-jaw chucks without modification.

Key Features

• M42 cobalt steel construction for superior hardness and heat resistance in tough materials
• TiN coating reduces friction and extends cutting edge life
• 135-degree split point eliminates need for center punching and reduces thrust
• Parabolic flute design promotes rapid chip evacuation in deep-hole drilling
• Web-thinned tapered web reduces cutting resistance at the chisel edge
• Meets ASME B94.11M and DIN 338 standards for consistent dimensional accuracy

Compatibility

Designed as an OEM-style replacement or direct-use jobber drill bit compatible with standard 3-jaw chucks and straight-shank collet holders accepting a 0.1181-inch diameter shank.

Installation Notes

Install in a properly rated drill press, handheld power drill, or CNC spindle with a chuck rated for the shank diameter before energizing the tool. Secure the workpiece firmly before drilling to prevent movement. Use cutting fluid or coolant where recommended by your material and machine manufacturer to maximize bit life, noting this bit is not rated for coolant-through delivery. Follow applicable shop safety standards and wear appropriate eye protection during all drilling operations.
