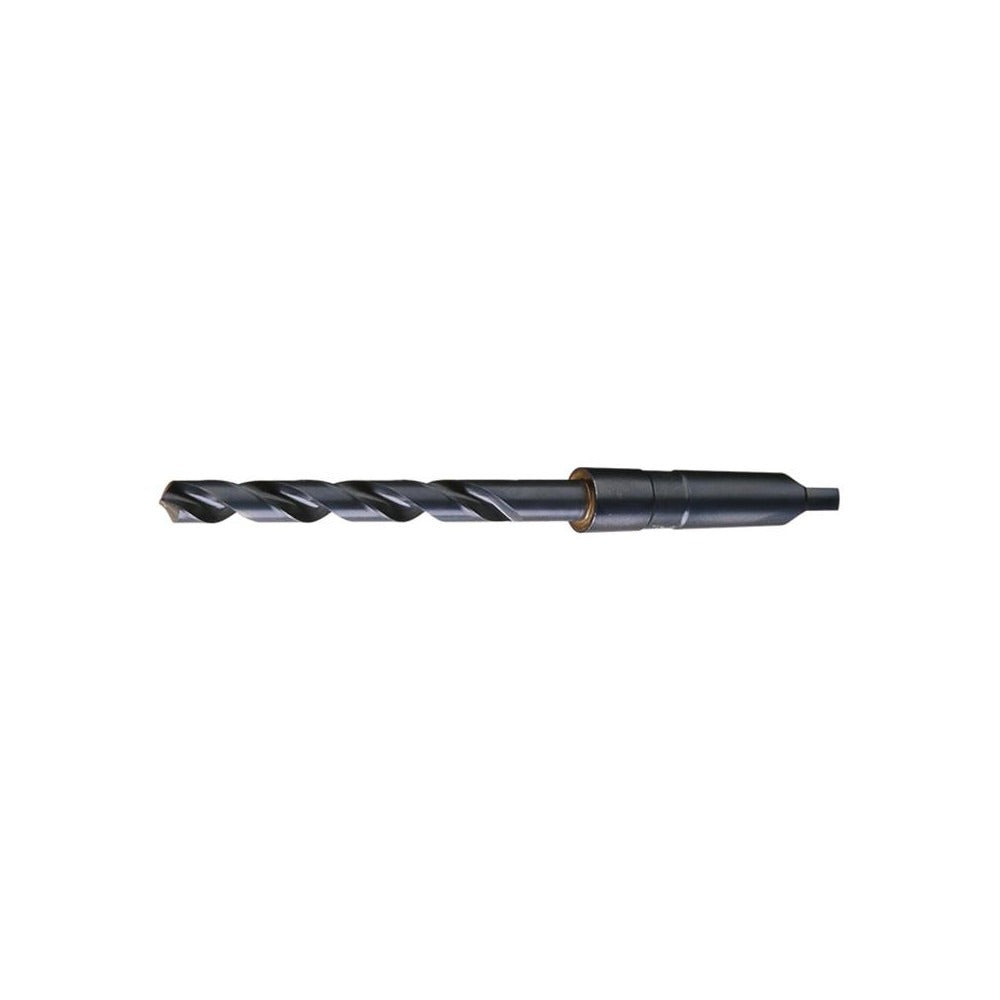

Cleveland C12199 Taper Shank Drill Bit 19/32 in 2MT Hss

Product Description

The CLEVELAND C12199 is a taper shank drill bit designed for precision drilling in metal, wood, and general-purpose materials. It features a 19/32-inch diameter (0.5938 inches decimal) and a No. 2 Morse taper shank that seats directly into compatible spindles and tailstocks without a separate chuck. The 118-degree standard point geometry with web thinning reduces thrust and centers the bit more reliably at entry. An oxide finish provides mild corrosion resistance during storage and use. This bit is installed and used by machinists, tool-and-die workers, and maintenance mechanics working on drill presses, lathes, and milling machines.

This bit fits general-purpose production and maintenance drilling applications in shops running taper-shank tooling. The No. 2 Morse taper shank is the most common taper designation in light-to-medium machine tools, making this bit a practical fit for a wide range of floor-standing drill presses and manual lathes. Right-hand spiral flutes with a regular helix clear chips efficiently during standard through-hole and blind-hole drilling in ferrous and non-ferrous stock. Coolant-through capability is not available on this model.

Key Features

• 19/32-inch diameter (0.5938 inches) with a tolerance of +0.0000 to -0.0012 inches for consistent hole sizing
• No. 2 Morse taper (2MT) shank for direct mounting in compatible spindles and tailstocks
• 118-degree standard point angle with web thinning to reduce entry thrust
• High-speed steel construction for durability across general-purpose drilling tasks
• Right-hand spiral flutes with regular helix for efficient chip evacuation
• Oxide finish for basic corrosion protection during storage

Compatibility

Designed as a general-purpose replacement or addition for machine tools equipped with a No. 2 Morse taper spindle, including floor-standing drill presses, manual lathes, and milling machines that accept 2MT tooling directly. Conforms to ASME B94.11M standards.

Installation Notes

Installation is performed by machinists or qualified shop personnel. Clean the taper shank and the spindle socket thoroughly before seating to ensure full contact and prevent slippage. Drive the taper firmly into the spindle socket using appropriate tooling; do not seat by striking the cutting end. Use a drift and knockout bar at the spindle slot to remove the bit safely after use.
