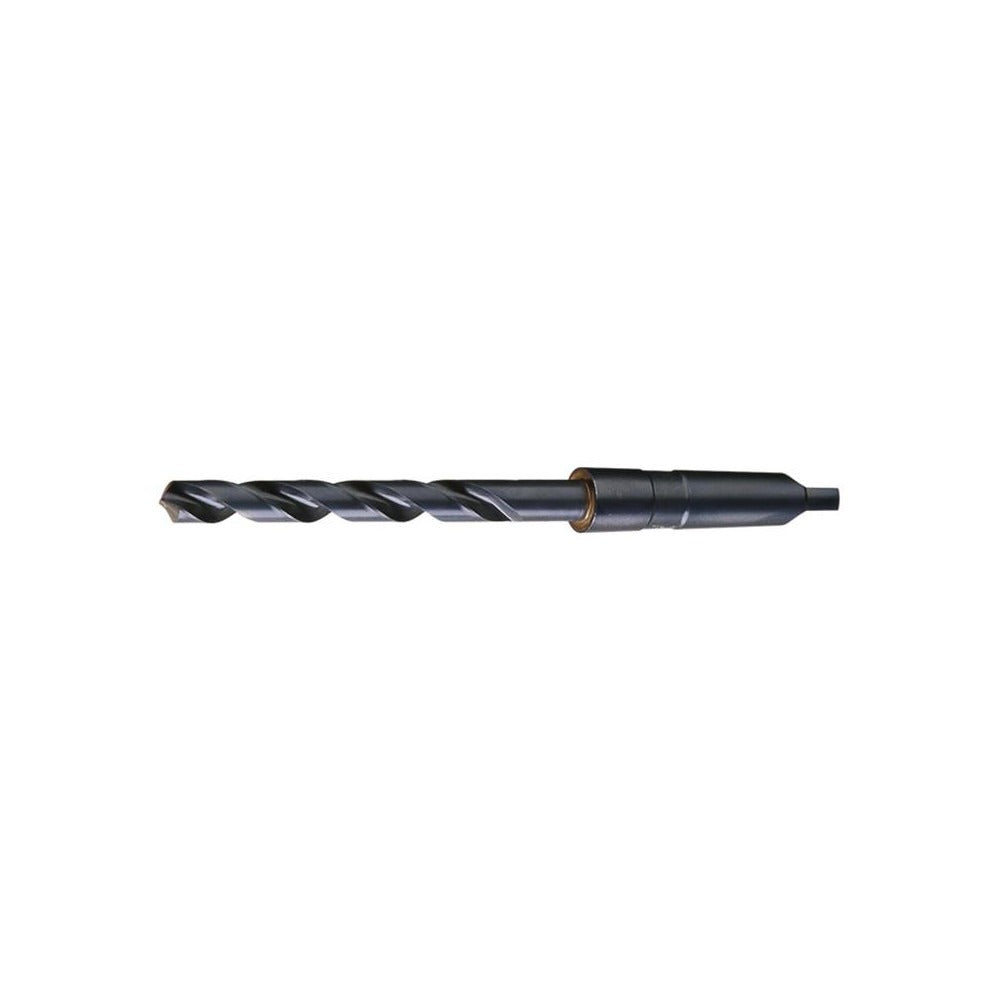

Cleveland C12075 Taper Shank Drill Bit 7/32 Inch 1MT

Product Description

The CLEVELAND C12075 is a taper shank drill bit designed for general-purpose drilling in metal, wood, and similar materials. It accepts a No. 1 Morse taper (1MT) shank, making it compatible with drill presses, lathes, and milling machines equipped with a matching taper socket. The bit is manufactured from high-speed steel with an oxide finish for basic corrosion resistance and reduced friction during cutting. At 7/32 inch (0.2188 inches) in diameter, it delivers precise hole sizing within a tight tolerance of +0.0000 to -0.0007 inches. The 118-degree standard point angle suits a wide range of common materials. Installation and use require no coolant-through capability, keeping setup straightforward for most shop environments.

This drill bit is suited for machine shop, maintenance, and fabrication applications where a taper shank drive is the preferred or required interface. The spiral flute design promotes chip evacuation during drilling. With a flute length of 2.75 inches and an overall length of 6 inches, it provides adequate reach for most standard drilling operations on drill presses or manual machines. It is well-suited for machinists, tool-and-die workers, and maintenance mechanics working with ferrous and non-ferrous materials in light to medium-duty production environments.

Key Features

• 7/32 inch (0.2188 inches) diameter with tight tolerance: +0.0000 to -0.0007 inches
• No. 1 Morse Taper (1MT) shank for secure, self-locking drive interface
• 118-degree standard point angle for general-purpose material compatibility
• High-speed steel construction with oxide finish for durability and friction reduction
• Right-hand cutting, regular spiral flute for efficient chip evacuation
• Web-thinned point reduces feed force and improves penetration

Compatibility

Designed for use in any drill press, lathe, or milling machine spindle fitted with a No. 1 Morse Taper (1MT) socket. Conforms to ASME B94.11M standards for taper shank drill bits.

Installation Notes

Installation is performed by a machinist or qualified shop technician. Power down and lock out the machine before seating or removing the taper shank. Clean both the shank and the taper socket before insertion to ensure full contact and prevent slippage. Use a drift key and a soft mallet for removal — never strike the spindle housing directly.
