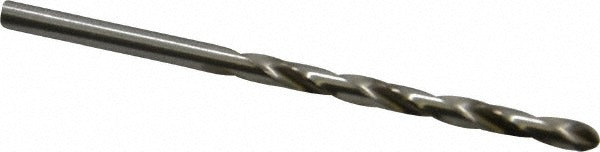

Cleveland C11680 Jobber Drill Bit Wire 26 Hss 135 Deg

Product Description

The CLEVELAND C11680 is a jobber-length drill bit in wire gauge size 26, with a decimal diameter of 0.1470 inches, manufactured from high-speed steel with a bright uncoated finish. Built to NAS 907 Type B standards, this heavy-duty bit features a 135-degree split point for fast engagement and reduced walking on entry. The spiral flute geometry is a regular helix with a tapered web configuration and web thinning for improved chip evacuation. Overall length is 3.0 inches with a 1-7/8-inch flute length and a straight-cylindrical shank. It is sold individually and installed by machinists, maintenance technicians, and fabricators in production or repair applications.

The C11680 is suited for drilling aluminum as its primary workpiece material, making it a practical choice in HVAC fabrication, sheet metal work, and light manufacturing where small-diameter precision holes in non-ferrous materials are required. The straight-cylindrical shank seats in standard three-jaw drill chucks on both handheld and bench-mounted drill presses. The bright uncoated finish is appropriate for aluminum and other non-ferrous materials where coated surfaces are not required.

Key Features

• Wire gauge size 26, 0.1470-inch decimal diameter with a tight tolerance of -0.0007 to 0.0000 inches
• 135-degree split point reduces thrust and minimizes drill walking on entry
• Web-thinned, tapered web construction improves chip flow and reduces cutting resistance
• High-speed steel construction rated for heavy-duty use
• Bright uncoated finish suited for aluminum and non-ferrous workpieces
• Meets NAS 907 Type B specification

Compatibility

Designed as an OEM-style replacement or production-grade jobber drill bit for use in standard three-jaw drill chucks accepting a 0.1470-inch straight-cylindrical shank.

Installation Notes

Install and remove this bit with the drill press or handheld drill fully powered off and the chuck key removed from the chuck. Secure the straight-cylindrical shank firmly in the chuck before beginning any drilling operation. Use appropriate cutting fluid or lubrication when drilling at higher feed rates to extend bit life. Follow applicable shop safety standards and wear appropriate eye protection during all drilling operations.
