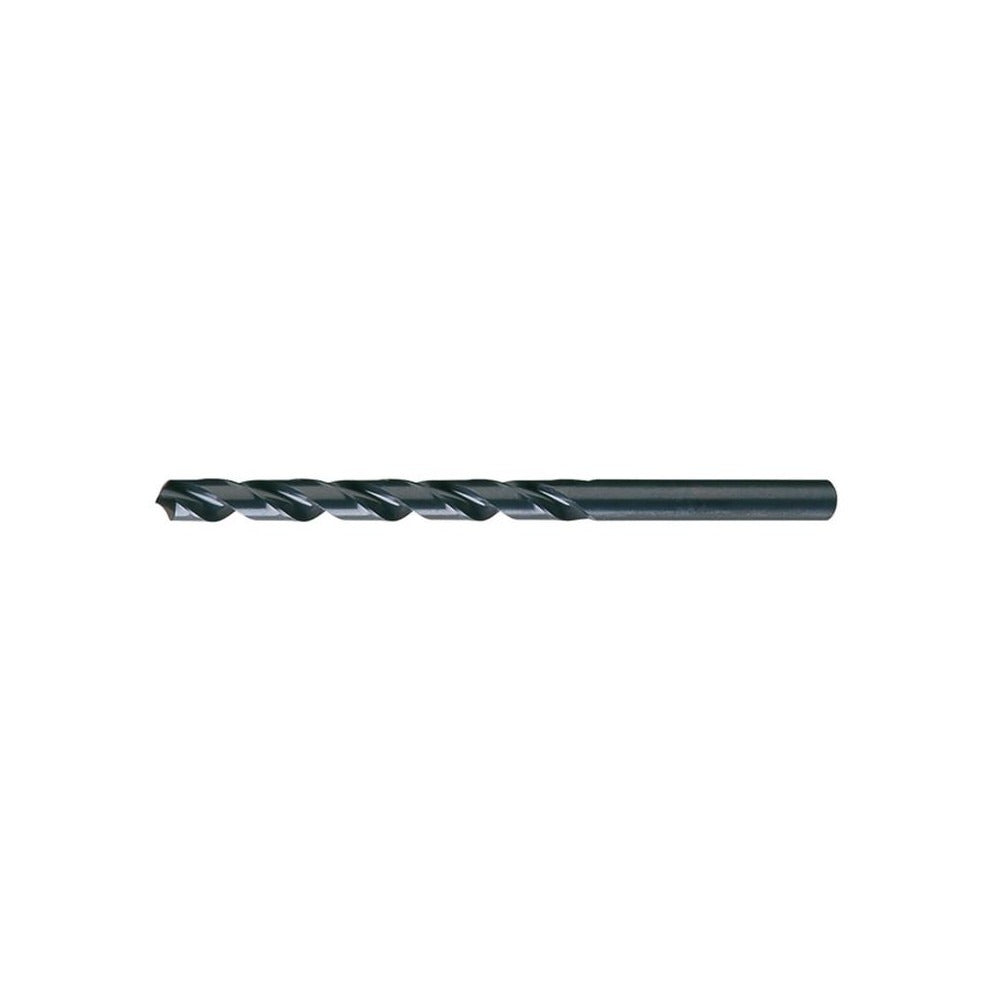

Cleveland C08680 Taper Length Drill Bit Wire Size 25

Product Description

The CLEVELAND C08680 is a taper length twist drill bit engineered for general-purpose hole-making in metal and ferrous materials. Built from high-speed steel with a coated finish, it carries a wire gauge size 25 (0.1495 inches decimal diameter) and features a 118-degree standard point angle for consistent, accurate entry. The spiral flute geometry and web-thinned, tapered web design reduce cutting resistance and improve chip evacuation. With a 3.0-inch flute length and 5-3/8-inch overall length, this bit provides extra reach compared to a jobber-length equivalent, making it well-suited for deeper holes where a standard-length bit falls short. It is installed and used by machinists, maintenance technicians, and metal fabricators.

The C08680 is intended for use in drill presses, lathes, and handheld power drills where a straight-shank taper-length bit is required. It is rated for material applications including alloy steel, carbon steel, and cast iron. The right-hand cut spiral flute design is compatible with conventional clockwise-rotation drilling equipment. This bit is packaged individually and is appropriate for both shop and field use wherever a longer reach is needed without stepping up to a half-round or extended-length configuration.

Key Features

• Wire size 25 diameter — 0.1495 inches decimal equivalent
• 118-degree standard point angle for general-purpose entry in steel and cast iron
• Taper length body — 3.0-inch flute length and 5-3/8-inch overall length for extended reach
• High-speed steel construction with coated finish for wear resistance
• Web-thinned, tapered web reduces thrust and improves chip clearance
• Right-hand spiral flute, straight shank — fits standard drill chucks
• Meets ASME B94.11M and DIN 340 standards

Compatibility

Designed for use in alloy steel, carbon steel, and cast iron applications. Compatible with standard drill chucks accepting a 0.1495-inch straight shank. Conforms to ASME B94.11M and DIN 340 dimensional standards for taper length drill bits.

Installation Notes

Install in a properly sized drill chuck and verify shank seating before operation. Secure the workpiece firmly before drilling to prevent movement and bit deflection. Apply appropriate cutting fluid when drilling steel or cast iron to extend tool life and maintain hole quality. Inspect the cutting edges for wear before each use and replace the bit if chipping or dulling is observed.
